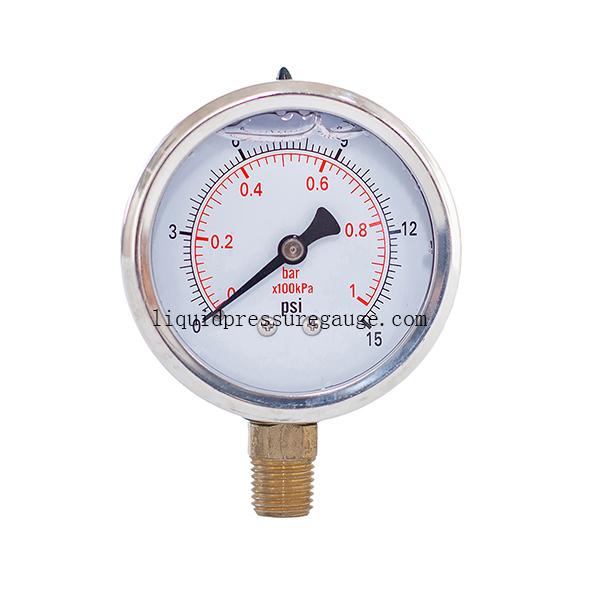

Dry 1/4" NPT Liquid Filled Water Pressure Gauge 2'' 50mm 15 Psi
Price:
Negotiable
MOQ:
1000 pcs
Delivery Time:
20-40 work days
Product Description
2-1/2 inch Pressure Gauge, glycerine, 0-15 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal
Glycerin filled dampens the effect of vibration and pulsation.
Features:
- Body: Stainless Steel 304
- Connection Material: Brass
- Application: Water, Air, Oil
- Application: Water, Air, Oil
- Double Scale: psi & kPa ( Red & Black)
- Dial Face: 2-1/2"
- Connection: 1/4 NPT or 1/4 BSP
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
