30 PSI Liquid Filled Pressure Gauges, 63mm Class Dial Plate Stainless Steel Case
Price:
Negotiable
MOQ:
1000 pcs
Delivery Time:
20-40 work days
Product Description

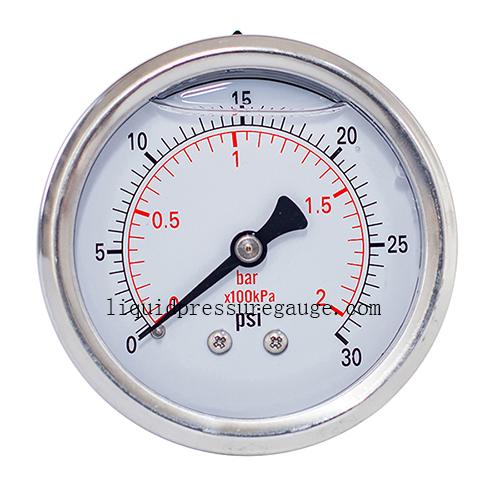

2-1/2 inch Pressure Gauge, glycerine, 0-30 psi/bar/Kpa, 1/4 BSP back mount, stainless steel case and brass internal
Application:
Suited for use with water,oil,air,gas or other non-corrosive media Liquid filling version for adverse service conditions where pulsation or vibration exists.The range is 0-30 psi.
Feature:
- Range: 0-30 psi
- Double scale: psi/bar
- Filled with glycerine
- Opitional: filled with silicon oil
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
