Stainless Steel Liquid Filled Pressure Gauges With Flange 1/4 BSP Back Connection

Price Negotiable
Price: Negotiable
MOQ: 500 pcs
Delivery Time: 20-40 work days
Product Description

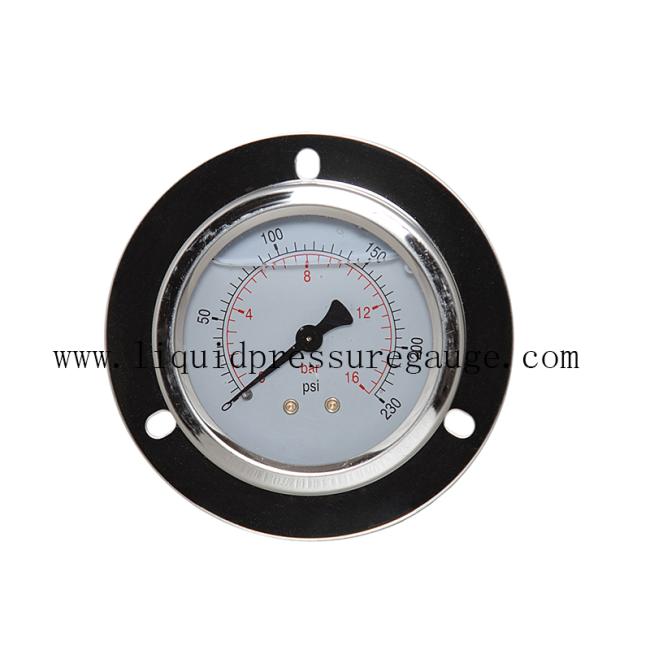

stainless steel Liquid Filled Pressure Gauges with flange, 0-16 bar, 2-1/2 dia, 1/4 BSP back connection



     Pressure gauges are performance measurement devices that are applied for the calibration of pressure in fluid media. There exists a sense of individuality because of the difference based on their unique design and application. In measuring pressure values of fluid in a system, pressure gauges not just ensure optimal performance but that too with safety and accuracy. As already mentioned, pressure gauges are applied for measuring the condition of the fluid by estimating the force that the same fluids would exert. The measurement parameters perfectly define whether you have any errors in your tanks or systems.



Features:

-Case: Stainless steel

- Connection Material: Brass
- Application: Water, gas, Oil
-Range:0-16 bar
- Dial Face: 2-1/2"
- Connection: 1/4 BSP back mount







Product name Pressure gague with flange
Application It can be used for measuring media pressure with vibration or pulsation.
Face dia  2-1/2"
Case unpolish stainless steel
Ring stainless steel
Connetion & socket: brass
Movement brass
Mount 1/4 BSP back mount
Window safety glass
Liquid fillable
Range 0-16 bar
Mount back mount
Accuracy ±1.6%
