Night Vision 33ft RV Wireless Backup Camera System For Truck Trailer

Price Negotiable
Price: Negotiable
MOQ: 1pc
Delivery Time: 5-8 days
Brand: TX
Product Description

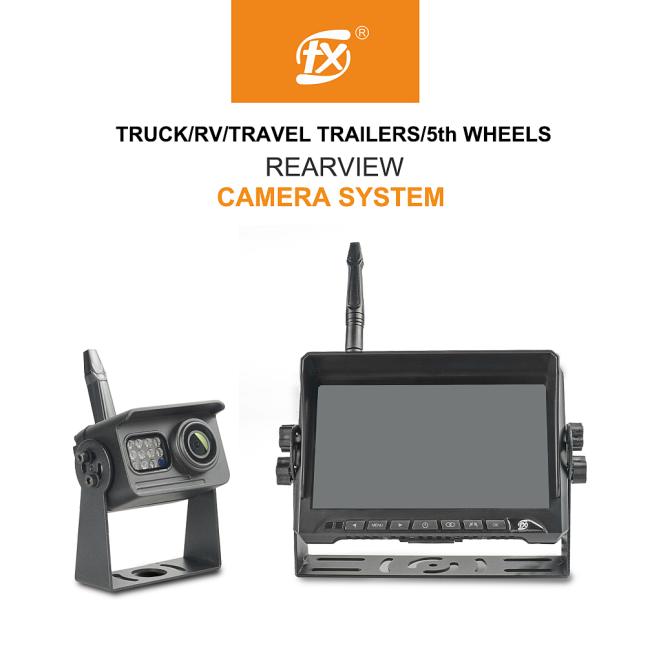

Night Vision 33ft RV Wireless Backup Camera System For Truck Trailer



HD Wireless Truck Rearview Backup Camera Backup Camera System For Trailer​



Features:



1. Transmission distance can reach 1650 ft (barriers free)

2. Record important events with the built-in 720P HD DVR

3. Multiple split view mode available on the 7" IPS screen and displays up to 4 cameras views

4. Adjustable rear assist marker lines help you backing up properly

5. Mounts as the marker lights on RV/Travel Trailer

6. Featuring a smart IR cut, IP69K Waterproof, 120-degree Angle Lens night vision camera

7. Waterproof is approved by IP69K certification, with great durance in harsh environment!

8. The metal camera outer case provides a waterproof housing for the rear/doorway camera



Specification

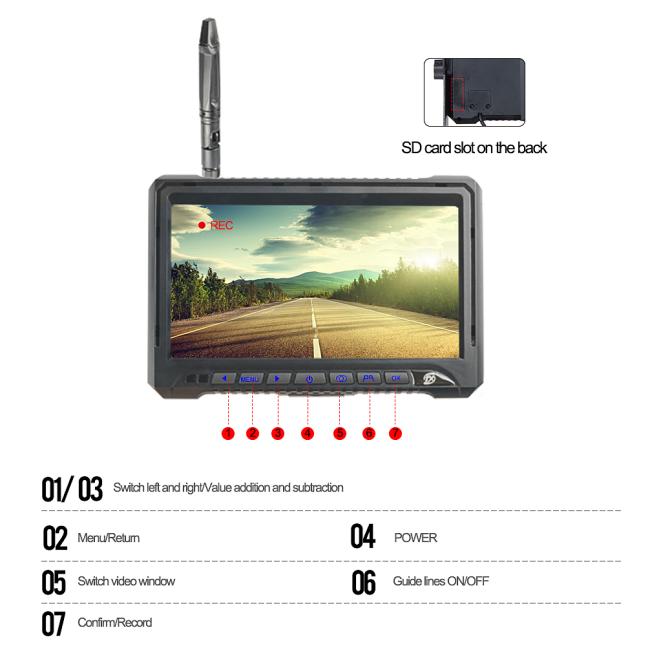

Montior



Screen Size 7 inch
Video Recording Yes
Resolution 1024 x 3(RGB) x 600
SD Card Max.128G
Video Format MP4
Adjustable Parking Line Yes
Brightness 900 cd/m²
Channel 4 channels Max
Split Mode Yes
Power Supply DC 12-24V
Outer Dimension 184mm(W)X129mm(H)X26mm(D)



Camera



Viewing Angle 120°
Size 78*64*50mm
Image Device 1/2.7" COMS (HD)
Waterproof rating level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC 12-32V
Power Consumption 150mA/12V
IR Control Smart IR-CUT 650nm Day/850nm Night Auto
Operating Temperature -20°C~+70°C
Storage Temperature -30°C~+80°C


Service


1. Efficient after-sales service,provide solutions for your problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal,T/T;



Notices:



1. Please use this product within the specified voltage range.

2. Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.

3. If smoke or burning smell is detected, please disconnect the power immediately.

4. Please wrap the cable with tape when connecting it.

5. Please fix the product firmly before use.

6. If you do not understand the installation process, please consult professionals.







Applications:

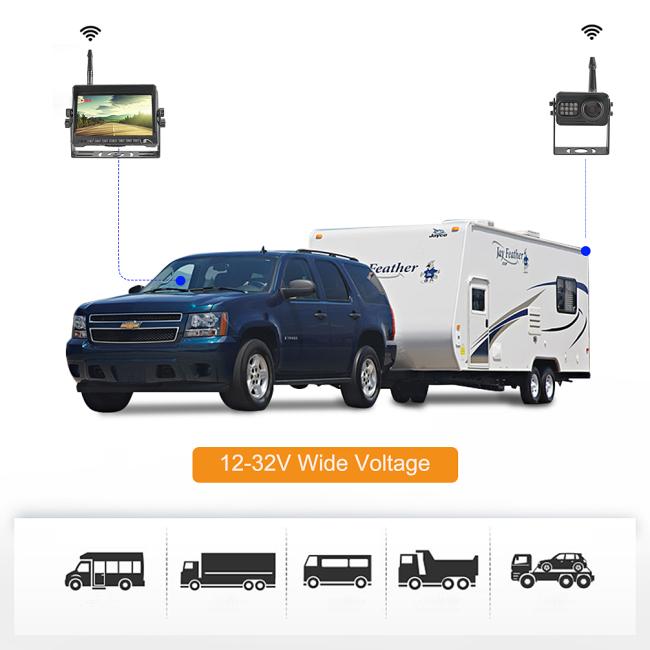

Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels IR Night Vision and so on.
