7 Inch Black Monitor car waterproof night vision camera With Red Lamp
7 Inch Black Monitor Car Waterproof Night Vision Camera With Red Lamp
7 Inch Black Monitor Wireless Backup Camera Night Vision With Red Lamp
Features:
1. High definition
2. Shockproof
3. Waterproof, shatterproof protection level equals to IP69K
4. Super wide angle(120°)

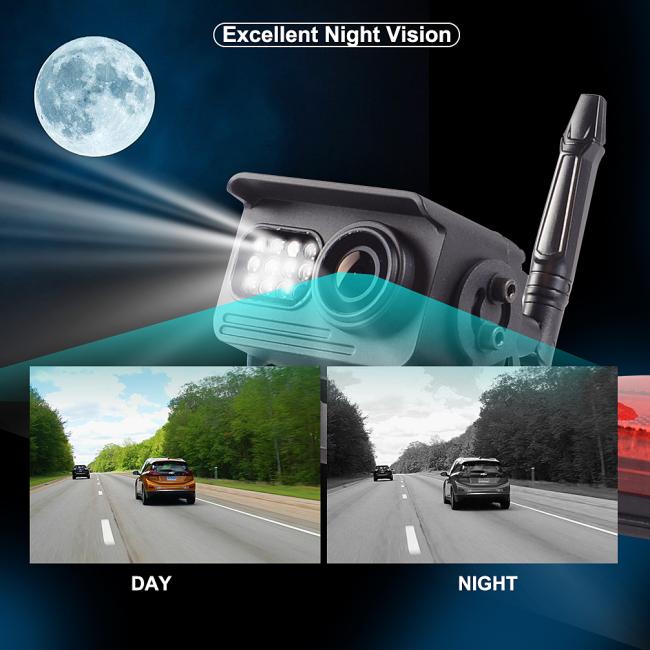

5. Night vision function :11 IR lights.
6. Camera angle is adjustable.
7. Performs in rugged conditions. Operating temperature: -20°C~+70°C
8. Mirror / Real optional
9. Two diffirent installation for Bracket,more convenient for Vehicles.
10. Camera with Red Lamp,can replace the existing rear marker light of RVs.
Specification:
Monitor
| Screen Size | 7 inch |
| Video Recording | Yes |
| Resolution | 1024 x 3(RGB) x 600 |
| SD Card | Max.128G |
| Video Format | MP4 |
| Adjustable Parking Line | Yes |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Split Mode | Yes |
| Power Supply | DC 12-24V |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Monitor Size | 214*59*85mm |
| Image Device | 1/2.7" COMS (HD) |
| Waterproof rating level | IP69K |
| Transmision Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
Install the camera:

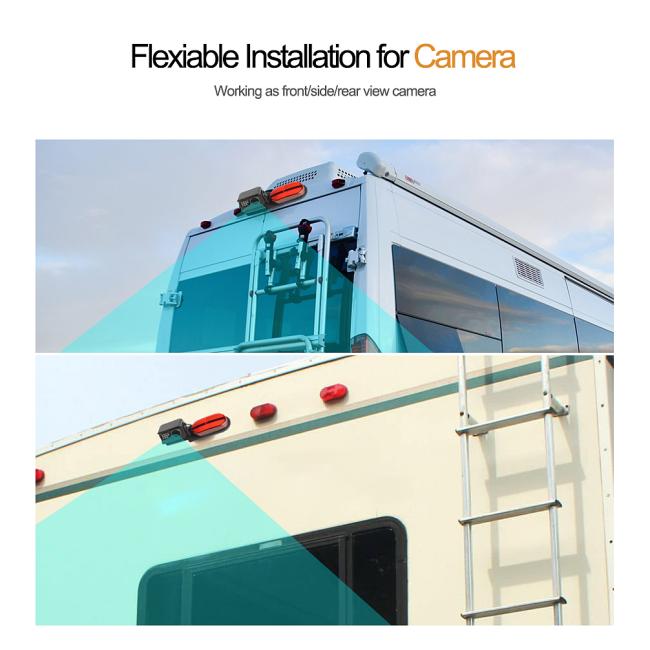

1. Choose the location to fix the camera.can replace the rear existing maker light of RV directly.

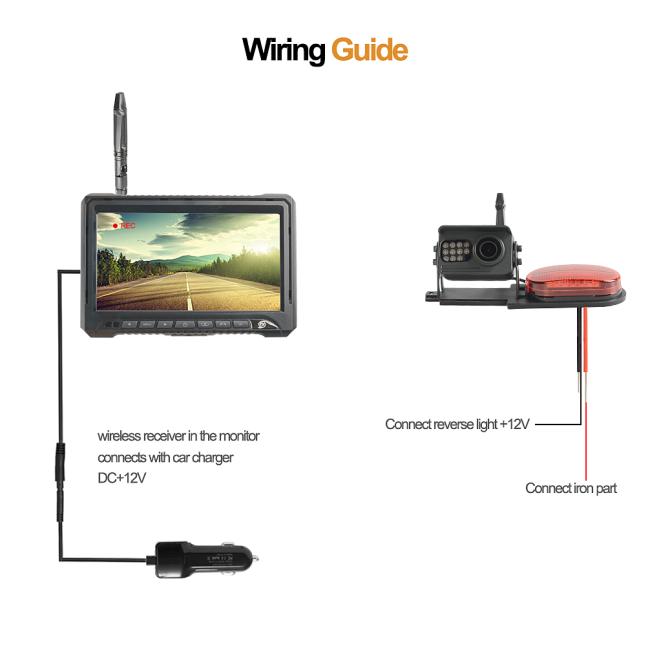

2. Find the positive and negative poles of the vehicle power supply DC12V,carefully strip the wire,then connect the red positive wire of the camera able to the positive pole of the vehicle power supply,and then connect the black wire of the camera to the negative pole of the vehicle power supply.After the connection is firm,wrap it with tape,pay attention to waterproof.
3. After all the cables are connected,power on for a temporary test,and then do the follow-up work after confirming the nomal work.

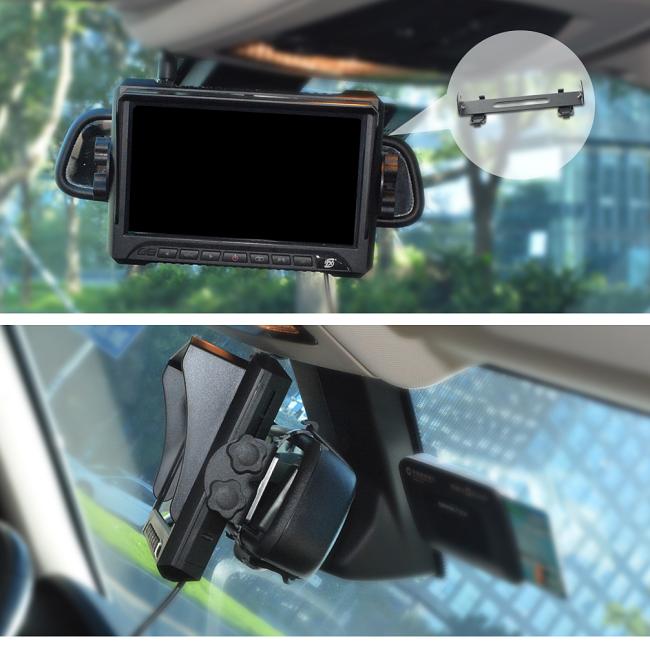

Install the monitor:
1. Choose the location to fix the monitor.
2. Connect the monitor to the cable of the car cigarette lighter adapter.
3. Insert the car cigarette lighter adapter into the car cigarette lighter socket,and place the monitor cable to avoid collision or endangering the safety of the vehicle and passengers.
4. After all the cables are connected,power on for a temporary test,and then do the follow-up work after confirming the normal work.
Application:

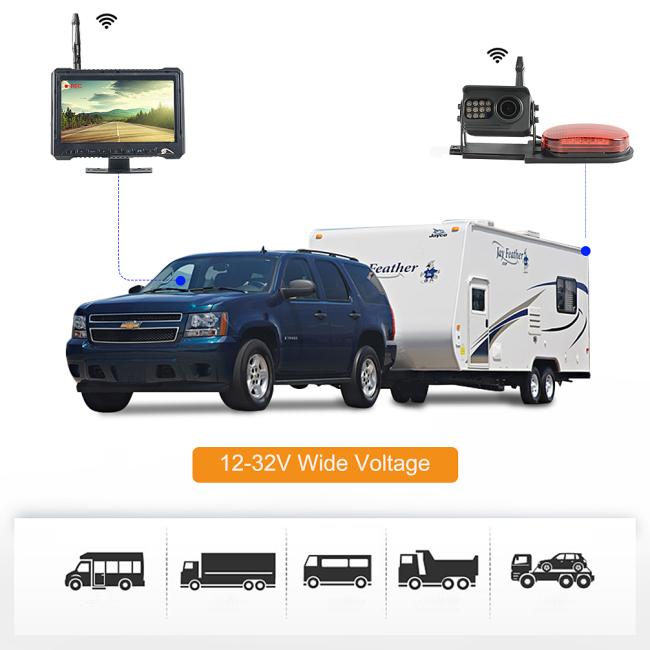

Suitable for Trailer,Agricultural vehicles,Truck,Bus and some Heavy Duty Car.
Service:
1. Efficient after-sales service,provide solutions for your problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal,T/T;
