Waterproof IP69K Vehicle Rearview Camera 7 Inch Monitor Recording
Waterproof IP69K Vehicle Rearview Camera 7 Inch Monitor Recording
Waterproof IP69K Backup 1080P Cameras Reversing Rearview 7 Inch Monitor Recording
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera:FX303T
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Camera:FX922T
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. 7 inch 720P Dual-channel digital high-definition wireless DVR set

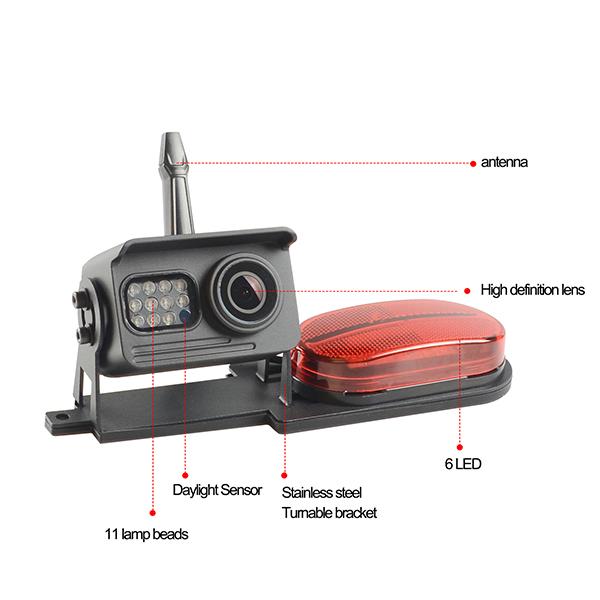

2. Camera with 6pcs highlight LED warning light and with silicone mold.
3. Support multi-channel camera display, can support up to 4 channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².

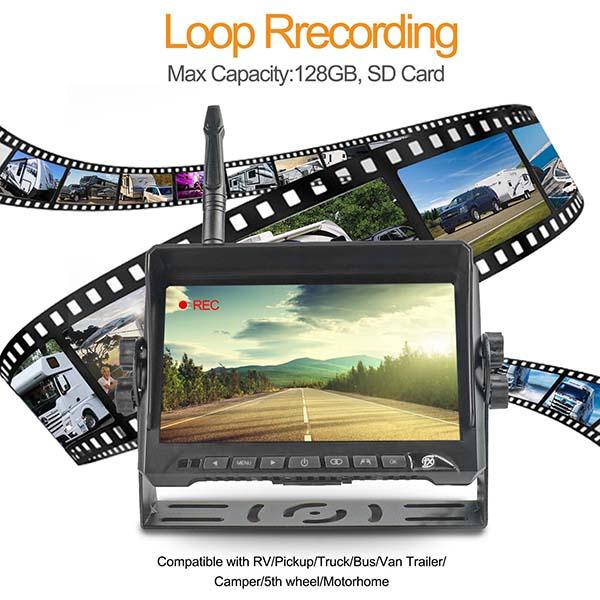

5. 720P H.264 HD DVR Video recording ,support playback online
6. Self-defining reversing line setting,
7. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 25DBM

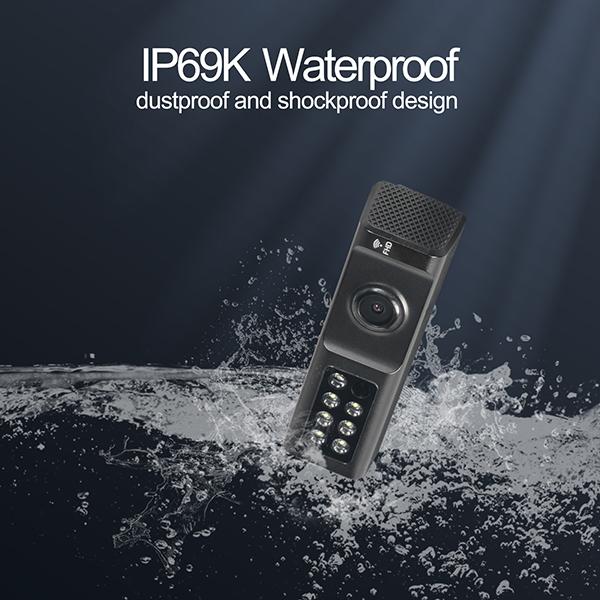

8. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.
9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.

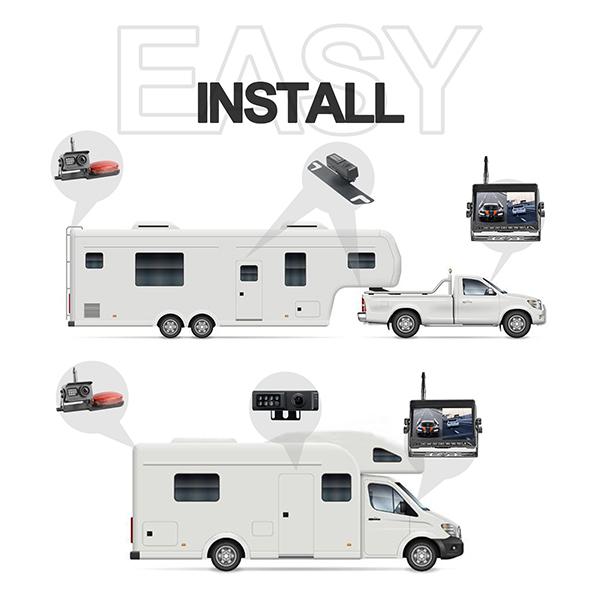

10. The FX922T camera power cord use flat wire design, and use for driving wireless rear-view recorder by connecting the license plate light.(Can install car license plate and RV side door)

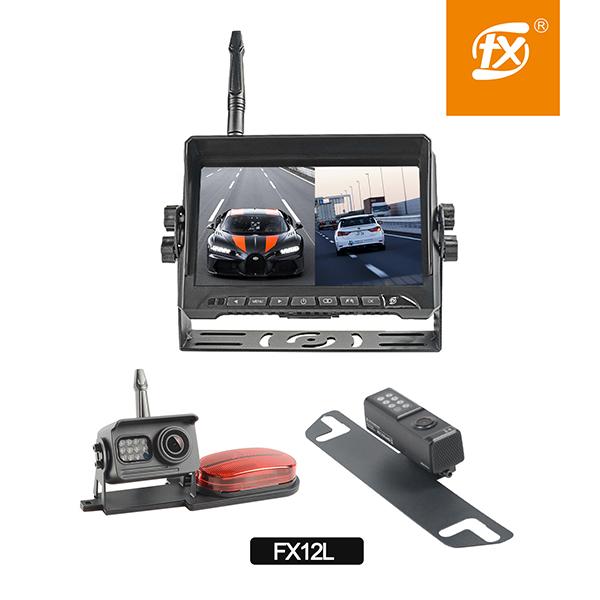

11. Combine content: one monitor with 2 cameras(FX909R+FX303T+FX22T)
12. Apply to vehicles: RV , Trailer RV
Packing and shipping:
OEM customized packing and Neutral packing available
Standard packing: each car camera wireless 2.4GHz into a paper color box, then into a carton;
You can choose your desired shipping method: DHL, UPS, FEDEX, EMS and post etc.
You can also use your own shipping forwarder in China to get your goods.
Why choose you?
1. We always reply customer’s email within 24-hours.
2. Have Professional QC to test parts before shipment. guarantee 100% good quality of parts before making shipment.
3. All parts with 1 year warranty, All quality certificate are available, such as FCC CE ROHS, fast lead time, competitive price, and after-sales service.
4. All parts are with wireless signal system and waterproof for all cameras.
