2.4GHz 2.4835GHz DVR Reverse Camera HD 1080P 5 Inch IPS Monitor
Price:
negotiable
MOQ:
1 set
Delivery Time:
5-8 days
Brand:
TX
Product Description
2.4GHz 2.4835GHz DVR Reverse Camera HD 1080P 5 Inch IPS Monitor
Wireless 1080P Backup Cameras Built-In Transmitter 5" IPS Monitor DVR Function
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
Camera(Small one)
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
FX909T Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Features:
- First item 5 Inch 720P Dual-channel digital high-definition wireless DVR set
- Resolution: 800*480 Brightness: 1000cd/M, HD image make people have evidence to check,and make sure driving more safety.
- 720P H.264 HD DVR Recording ,support playback online.
- Support split two-way display and video on the same screen.

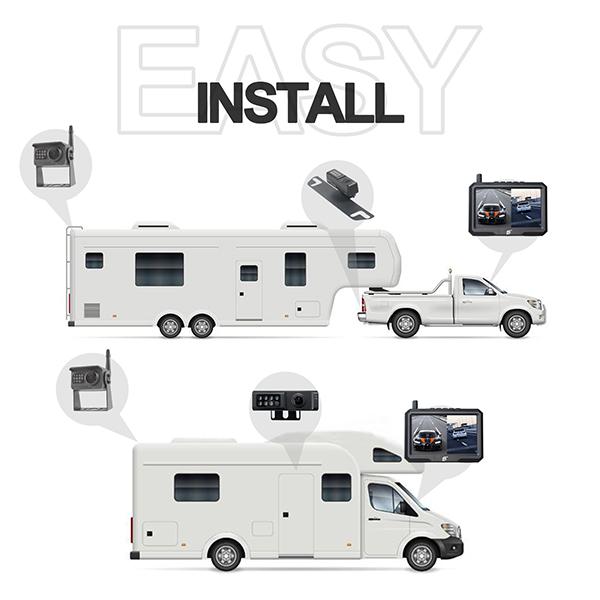

- Recommend to install on front and back side of vehicle or side door of RV, adjustable reversing line.
- With all-glass 120 degree wide view lens, 2 mega pixels, 1080p FHD resolution make the image more clarity.
- The FX922T camera power cord use flat wire design, and use for driving wireless rear-view recorder by connecting the license plate light.
- FX922T :Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.
- FX909T: Be of super night vision, by 11-LEDs with smart IR-cut function, 33ft night vision range really excellent for night driving.
- Apply to vehicles:mini car, pickup, SUV,RV, Trailer RV.
Warranty and service:
You(as the end user)get a 12 months guarantee from the date of purchase.
During the warranty period, if there is damage, repair or other problems, please contact the point of sale or qualified experts.
The general warranty terms apply to defects in production and materials. Please return the defective product to the point of sale.
