FHSS Wireless Night Vision Backup Camera 12 Inch Big Mirror

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 5-8 days
Brand: TX
Product Description

FHSS Wireless Night Vision Backup Camera 12 Inch Big Mirror

Wireless Night Vision Backup Camera 12 Inch Big Mirror AHD Car-Charger Receiver

Features:

1. First item 12 Inch AHD digital wireless streaming rear view mirror DVR
2. 12 Inch 1600*600 IPS big touch screen and Anti-glare screen.Support front 2K and back 1080P dual recording, support playback online.
3. Camera With Red Warning Light,design for RV which with existing rear marker light,Can replace the original RV Warning light directly.

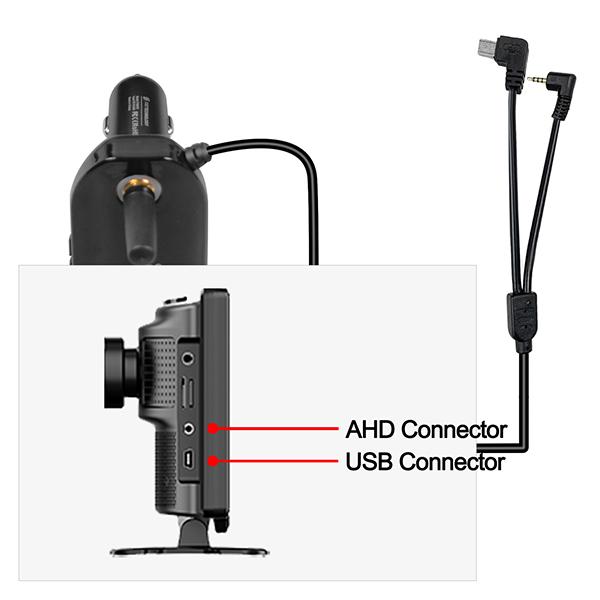

4. AHD Receiver use Car charger integrated design,power supply From Car cigarette lighter port, easy to install and more convenient.
5. Camera use Structural waterproofing process,waterproof IP69K,Up to 1650 feet wireless line of sight wireless reception range in open spaces.
6. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting.
7. Product context : FX303T+FX901R+L12
8. Apply to vehicles: RV, Trailer RV.

Specification:

Camera

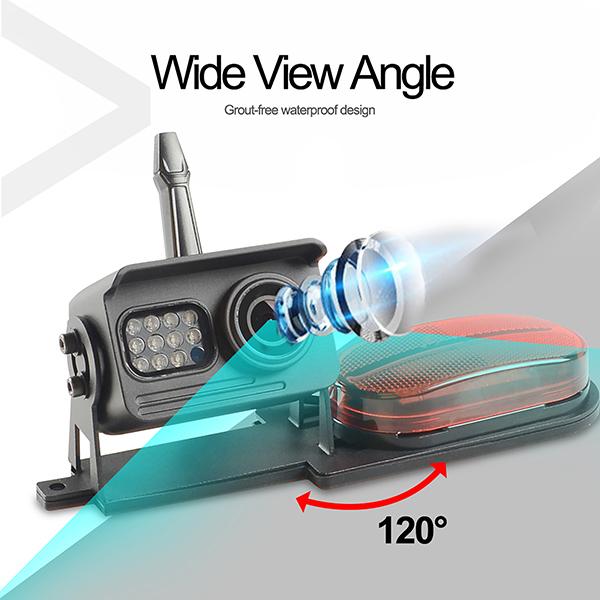

Viewing Angle120°
Image Device1/2.7" COMS (HD)
IR ControlSMART IR-CUT 650nm Day/850nm Night Auto
Waterproof levelIP69k
Transmission Distance(barrier free)1650ft
Night Vision Distance33ft
Latencyless than 200ms
Power SupplyDC+12V
Power Consumption150mA/12V
Transmission Power26dB
Weight430g
Spread SpectrumFHSS
Minimum Illumination0Lux


Receiver



Operation Frequency2.4GHz--2.4835GHz
Transmission Power23dB
RX Sensitivity-85dB
RF Bit Rate12Mbps
Video output format1080p
Coding Decompression methodH.264
Power SupplyDC 10-30V
Operating Temperature-20℃--70℃,RH85% MAX
Storage Temperature-30℃--80℃,RH85% MAX
Size92x68x43mm
Weight185g


OEM Service:

Support your creative idea to develop new product(Product appearance design, functional design, Logo customization, packing customization etc.)
We provide 12 months quality guarantee period for each products.
We offer one year warranty on all products purchased from us. If your item has any warranty issue please contact us for a satisfying solution.

Applications:

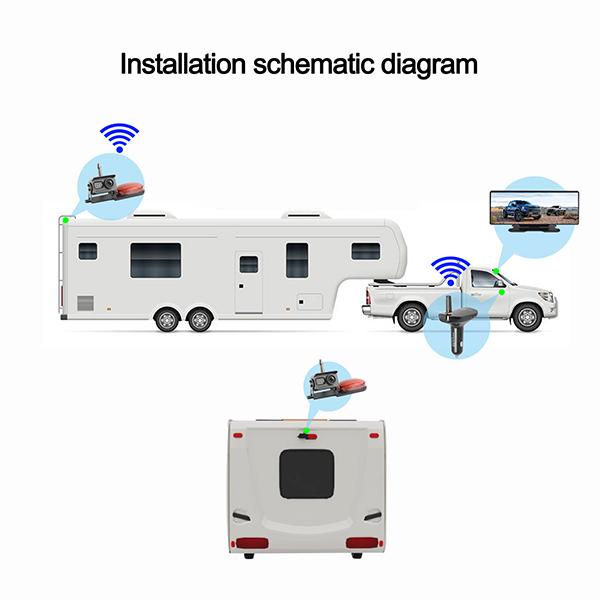

Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels IR Night Vision and so on.
