Waterproof IP69K Night Vision Backup Camera AHD Receiver Black Color
Waterproof IP69K Night Vision Backup Camera AHD Receiver Black Color
Wireless Night Vision Backup 1080P Waterproof Camera AHD Receiver Black Color
Specification:
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 68x43x91.5mm |
| Weight | 185g |
Features:
1. First item AHD digital wireless car-charger design rear pull(combine with streaming rear mirror DVR)
2. Camera power cord designed with flat line,built-in Digital HD 2.4GHz wireless transmitter.
3. Camera:brand-new and Unique product appearance design,built-in antenna.1080P high definition resolution.
4. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting

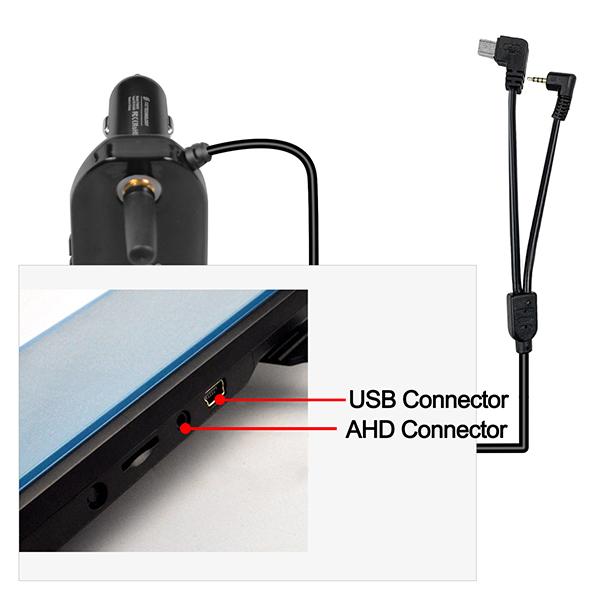

5. AHD Signal output,can compatible with most streaming media rearview mirrors or screens with AHD signal input on the market(highly recommend)
6. USB 5V Power supply output(Load design) with 3.5M data line, apply to different vehicles for wiring.
7. Apply to Vehicles: mini car, pickup, SUV,RV, Trailer RV.
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.
- If smoke or burning smell is detected, please disconnect the power immediately.
- Please wrap the cable with tape when connecting it.
- Please fix the product firmly before use.
- If you do not understand the installation process, please consult professionals.
