HD 1080P Truck RV Wireless Backup Camera AHD Car Charger Receiver
HD 1080P Truck RV Wireless Backup Camera AHD Car Charger Receiver
Truck Rearview Camera Reversing 1080P Transmitter AHD Car-Charger Receiver
Specification:
Camera

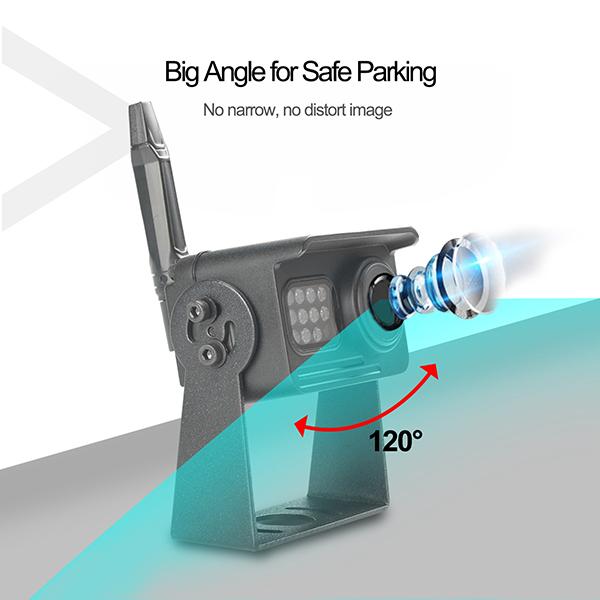

| Viewing Angle | 120° |
| Size | 78*64*50mm |
| Image Device | 1/2.7" COMS (HD) |
| Waterproof rating level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |

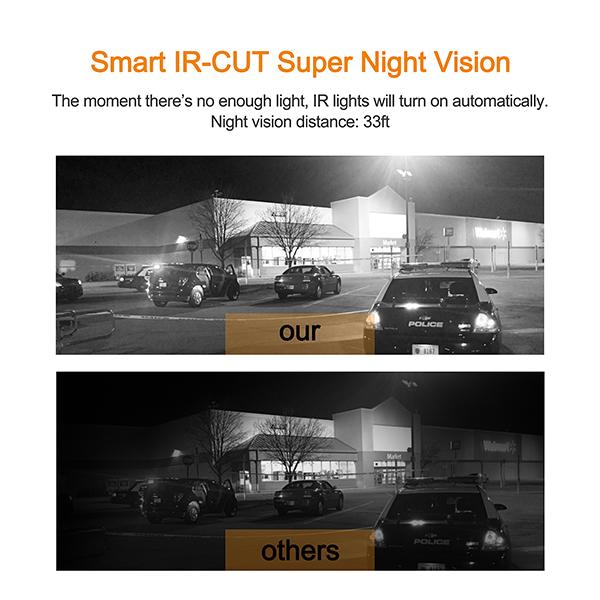

| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
Features:

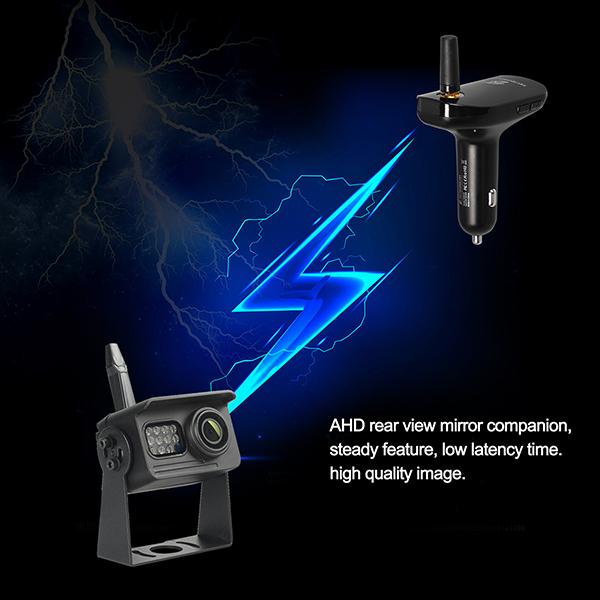

1. First item AHD digital wireless car-charger design rear pull(Supporting streaming media rearview mirror DVR use)
2. Receiver:Car charger integrated design, Video output format is 1080p,volume is 92x68x43mm
3. Camera use Structural waterproofing process, waterproof IP69K, Transmit power is 26DBM,built-in wireless transmitter.
4. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting
5. USB 5V Power supply output(Load design) with 3.5M data line, apply to different vehicles for wiring.

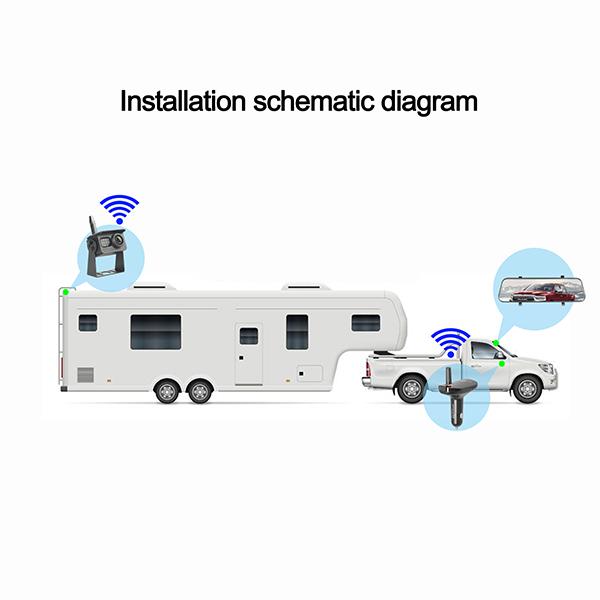

6. Apply to Vehicles: Trucks, Van, Agricultural vehicles, Construction vehicles, RV, RV Trailer
OEM Service:
Support your creative idea to develop new product(Product appearance design, functional design, Logo customization, packing customization etc.)
We provide 12 months quality guarantee period for each products.
We offer one year warranty on all products purchased from us. If your item has any warranty issue please contact us for a satisfying solution.
