HD 1080P Truck Rearview Camera Monitor 7 Inch Color Screen 2 Channel
HD 1080P Truck Rearview Camera Monitor 7 Inch Color Screen 2 Channel
Wireless Backup Camera Monitor 7 Inch Color Screen 2 Channel 1080P HD Camera
Specification:

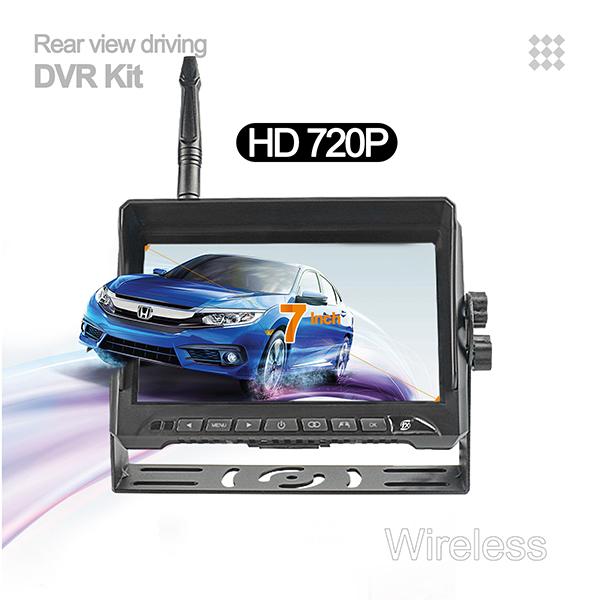

Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |

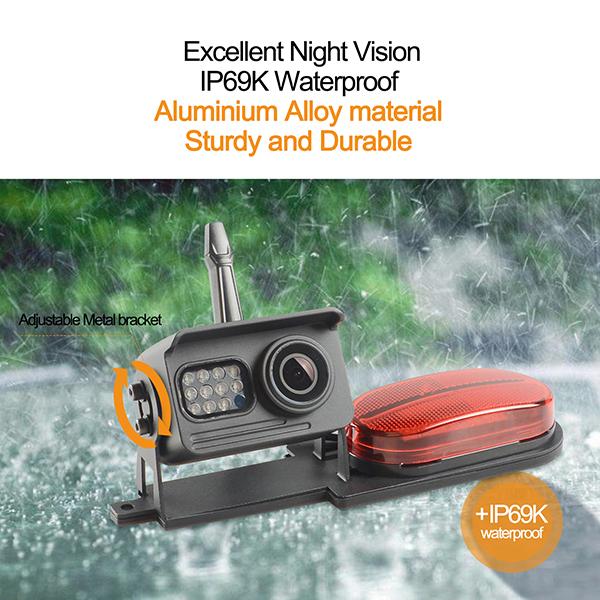

Camera FX303T
| Viewing Angle | 120° |
| Size |
214*59*85mm |
| Image Device | 1/2.7" COMS (HD) |
| Waterproof rating level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
FX922T Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. Support Multi-channel camera display, 4 channel Split screen max.
2. Monitor equipped with a variety of standard mounting brackets, apply to different type of vehicles, convenient to install.
3. Monitor's outer appearance use Innovative and unique model, and the key board use a light-transmitting design to make the touch more accurate at night.
4. Multiple channels are equipped with independent remote control, make operation simple and save worry.
5. FX922T Camera use flat line designed of cable line, power by connecting license plate light ,and can be working a long time for rear recording.
6. FX303T Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.
