10" Touch Screen IP69K Backup Wireless Camera Support 2 Channel
10" Touch Screen IP69K Backup Wireless Camera Support 2 Channel
Mirror Dash Cam Backup Wireless Camera 10" Touch Screen Car-Charger Receiver

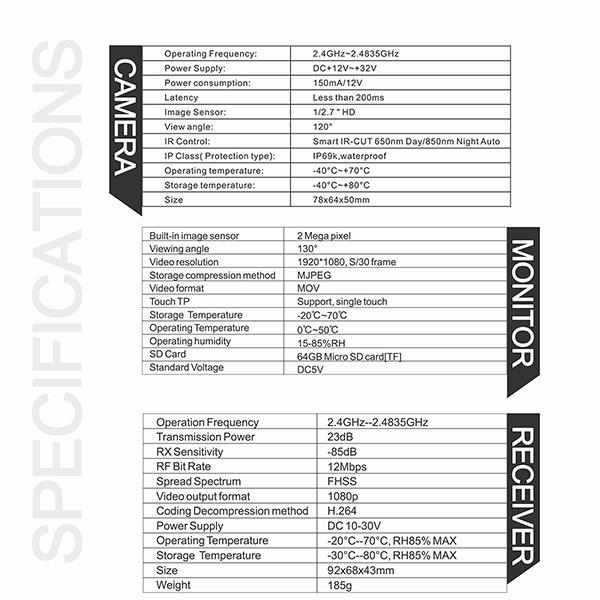

Specification:
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | Support micro TF Card 128G Max |
| Standard Voltage | DC5V |
Features:

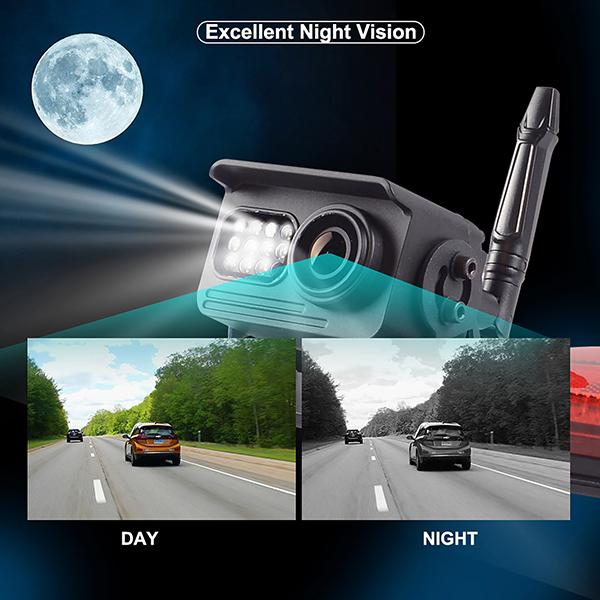

1. Camera:11pcs high power infrared light, IR-CUT smart switch, night vision distances can reach up to 10m.
2. 120 degree full-glass wide angle lens, 200W(1080P) Pixel sensor
3. Camera use Structural waterproofing process, waterproof IP69K, Transmission power is 26 DBM.

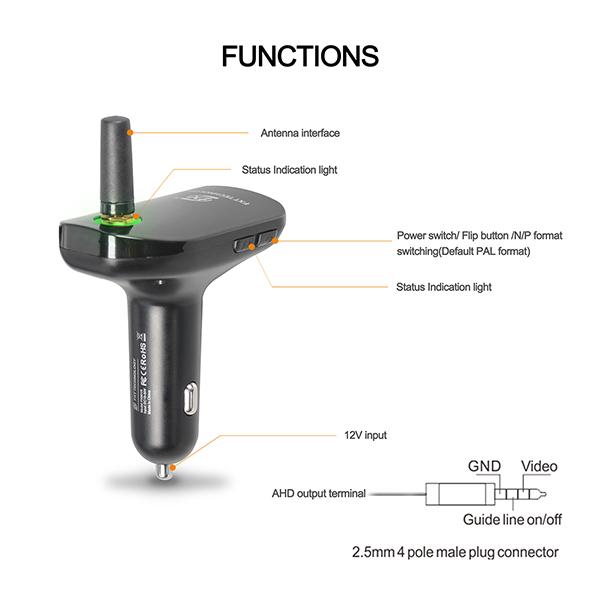

4. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting

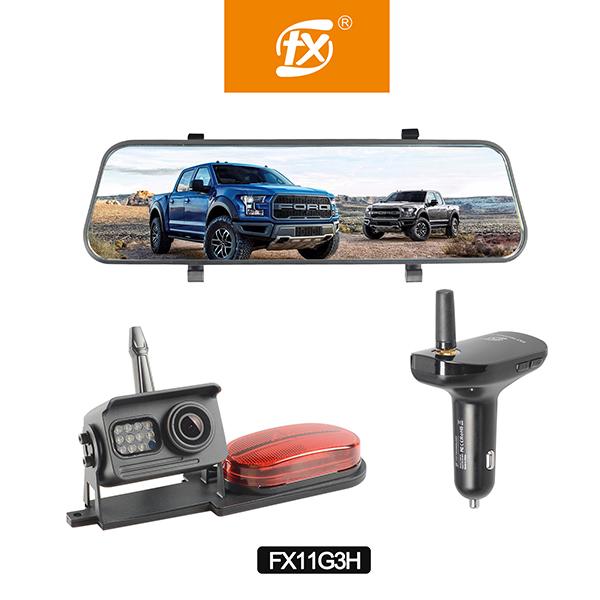

5. Product context : FX303T+FX901R+H10

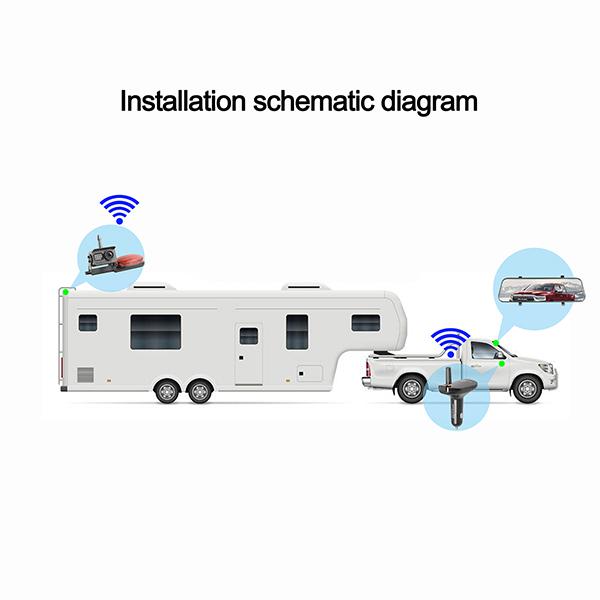

6. Apply to vehicles: RV, Trailer RV.
