10 Inch Touch Screen 640*360 Wireless Rearview Camera 2 Channel

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 5-8 days
Brand: TX
Product Description

10 Inch Touch Screen 640*360 Wireless Rearview Camera 2 Channel

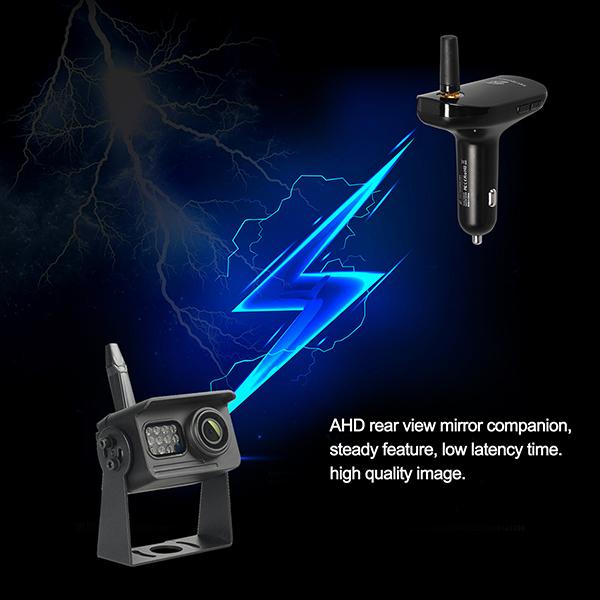

Wireless Rearview Camera 10 Inch Touch Screen Support 2 Channel AHD Receiver



Specification:



Receiver



Operation Frequency 2.4GHz--2.4835GHz
Transmission Power 23dB
RX Sensitivity -85dB
RF Bit Rate 12Mbps
Spread Spectrum FHSS
Video output format 1080p
Coding Decompression method H.264
Power Supply DC 10-30V
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 92x68x43mm
Weight 185g



H10 Rear View Mirror



Built-in image sensor 2 Mega pixel
Viewing angle 130°
Video resolution 1920*1080,S/30 frame
Storage compression method MJPEG
Video format MOV
Touch TP Support, single touch
Storage Temperature -20℃-70℃
Operating Temperature 0℃-50℃
Operating humidity 15-65%RH
SD Card 128GB Micro SD Card[TF]
Standard Voltage

DC5V



Camera

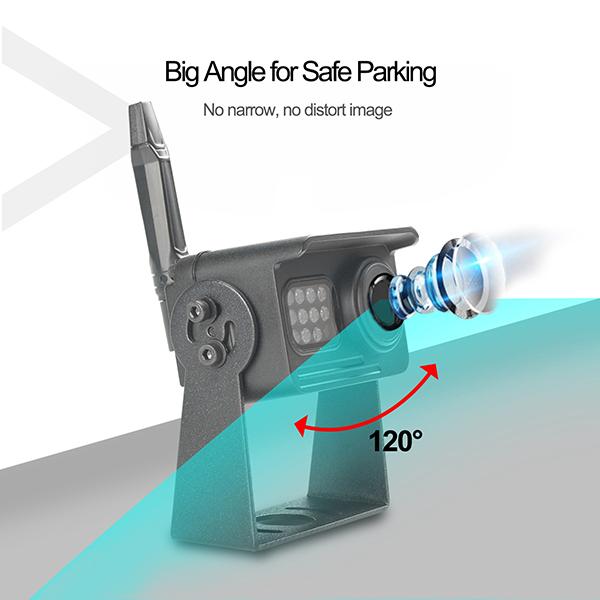

Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC 12-32V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination

0Lux



Features:



1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR

2. 10 Inch big touch screen and Anti-glare screen,Storage Temperature -20℃-70℃.

3. Support front and back 1080P dual recording, rear and front image recording.

4. The heavy-duty wireless backup camera captures a 120° horizontal view of the area directly behind your RV/Trailer,nothing can escape from the camera, resolution is 1080P, HD digital transmitter.

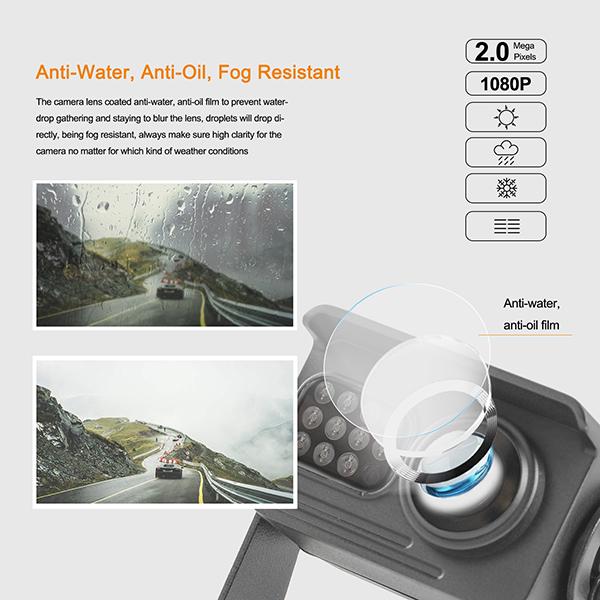

5. IP69K Waterproof,Prevent water droplets from gathering on the camera. No need to worry driving in a rainy day

6. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting .

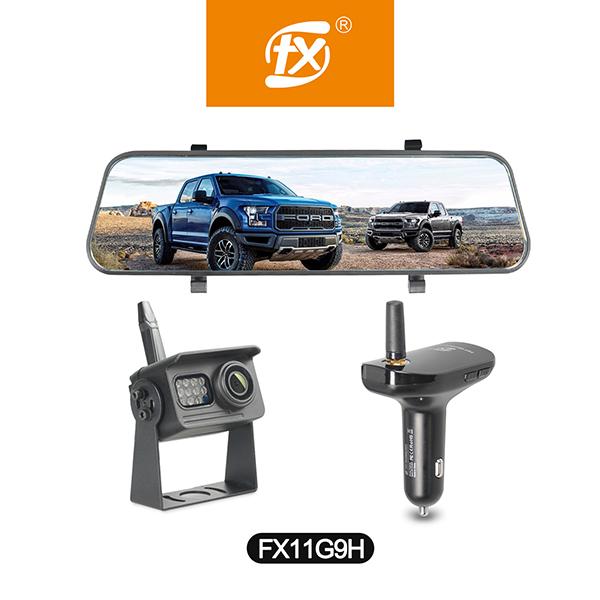

7. Product context : FX909T+FX901R+H10

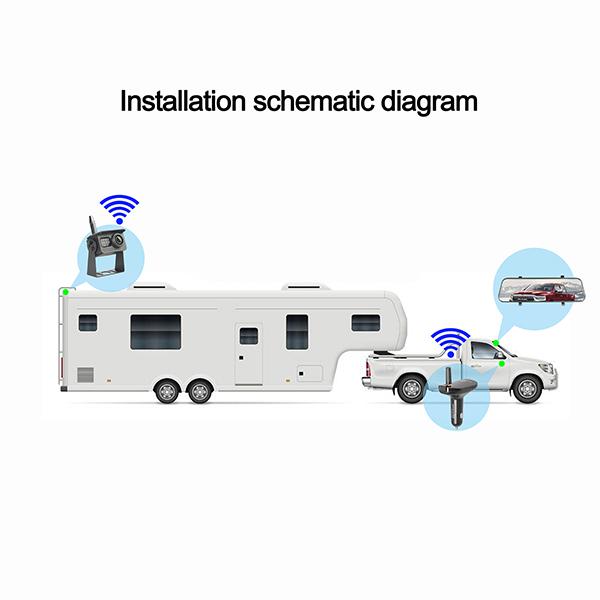

8. Apply to Vehicles: Trucks, Van, Agricultural vehicles, Construction vehicles, RV, RV Trailer



Competitive Advantage:

  1. Best Quality: All products will be well tested before shipping.
  2. Competitive price: We are factory directly selling, we are the source.
  3. Rich experience in Car rearview system.
  4. Good Guarantee/Warranty:1 years warranty.
  5. Customer demand is our demand, we always stand in the perspective of customer problems.
