Surface Mounted Indoor Single Phase MCB Box 18 Way With Transparent Window
Surface Mounted Transparent Window Metal MCB Distribution Box Consumer Unit With 18 Way Mcb Box
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
5. Movable door :not falling off, safe and beautiful.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of JX series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-M 106 | 6way | 178*210*17.5(26) | 177*209*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-M 110 | 10way | 250*210*17.5(26) | 249*209*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-M 113 | 13way | 304*210*17.5(26) | 303*209*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-M 116 | 16way | 358*210*17.5(26) | 357*209*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-M118 | 18way | 394*210*17.5(26) | 393*209*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-M 121 | 21way | 448*210*17.5(26) | 477*209*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-M 232 | 32way | 358*405*17.5(26) | 357*404*75*0.8 | 6*9 | 13 | 12 | 7 |
| JXP-M 242 | 42way | 448*405*17.5(26) | 447*404*75*0.8 | 6*9 | 16 | 15 | 10 |

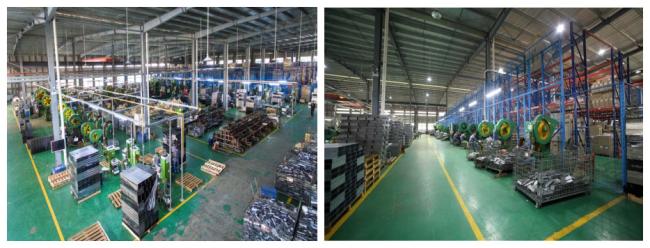

Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
