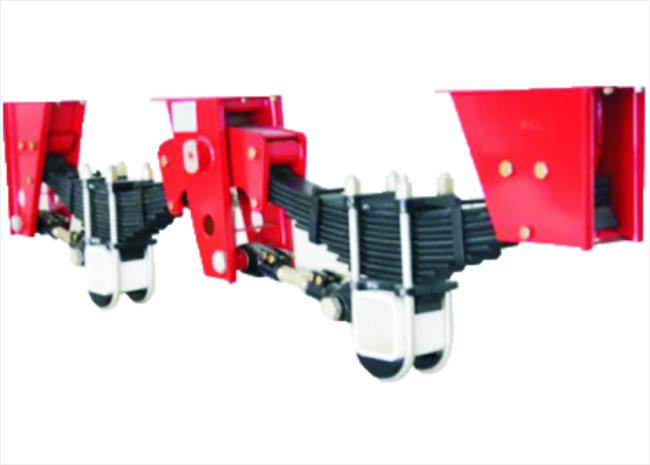

BPW Rubber Hole Axle Trailer equalizer beam

Germany style light suspension semi trailer suspension

The product description:

1. Easy attachment to the chassis and simple transversal and longitudinal bracing due to the practical and solid design of the mounting brackets.

2. Use of high-strength, weldrable mounting bracket material permits a homogeneous weld without the need for special welding instructions.

3. Maintenance-free, adjustable torque rods supported by rubber/metal bushings(1*per axle) permit simple, precise track adjustment. This possibility simplifies the attachment of the suspension to the chassis and has a positive influence on the service life of the tyres.

4. Available with axle capacities of12 to 48tons in single, tandem or tridem suspension configuration.(higher loads on your request)

Note:

1.Leaf spring size:100mm Width *12mm Thickness *12Pcs

2.Weight:1120kg (consist of 6 sets leaf spring)

3.Balance arm pin: 60 or 70

4.Thickness: 8mm, 10mm

5. Mount Height: 142 mm

6.Material: Q235

7.Certificate: ISO9001

8.Single-axle, double-axle, and 3-axle German type mechanical suspensions

9.Axle load capacity of 12ton, 14ton or 16tons.

10.Quantity and width of leaf spring and wheelbase is optional by your request;

11. Suitable for square 150mm axles, Φ127 round axle.

Product advantages:
1. Quality guarantee: we are a factory, we have quality inspection group.
2. Price advantage: no middleman, we give you more competitive price.
3. Customization available, we have design group, always follow your need.
4. ONE-STOP SUPPLIER, give your more convenience, save you from trouble. Our products as follow:
Semi trailer:
container semi trailer,
van semi trailer,
flatbed semi trailer,
fence semi trailer,
tipper semi trailer,
wing open semi trailer,
tank semi trailer,
car carrier,
FRP semi trailer,
Auto spare parts:
Wheel rim
Axle
Leaf Spring.
5th wheel & King pin
Suspension
Air Suspension
Bogie
Landing Gear
Air Chamber
Brake shoe
Brake drum
Slack adjuster
other components like twist container locks, screw locks, brake chamber, wheels, tires, and other functional components
