9207059 9257550 Hitachi ZX240 ZX230 ZX250 Hydraulic Arm cylinder seal kit
Part number:9207059,9257550
Cylinder No:9232344,9232347,9187392,9205254,
Rod:105MM
Piston:140MM
For:Hitachi ZX240,ZX230,ZX250
Material:PU+NBR+PTFE
CertifiCATEEion: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:300
MOQ:1set
Parts list
| NO. | Part number | Quantity | Product name |
| 9232344 | 1 | CYL.;ARM | |
| -9232347 | 1 | CYL.;ARM | |
| 1 | 7041163 | 1 | * TUBE;CYL. |
| 1 | 4645989 | 1 | * TUBE;CYL. |
| 3 | 7042288 | 1 | * ROD;PISTON |
| 3 | 4645892 | 1 | * ROD;PISTON |
| 4 | 1027923 | 1 | * HEAD;CYL. |
| 5 | M341880 | 14 | * BOLT;SOCKET |
| 6 | 4380144 | 1 | * O-RING |
| 7 | 4351498 | 1 | * SEAL;DUST |
| 9 | 4411660 | 1 | * SEAL |
| 10 | 4411655 | 1 | * RING |
| 11 | 4383089 | 1 | * RING;RETAINING |
| 13 | 4432450 | 1 | * BUSHING |
| 14 | 4268206 | 1 | * RING;RETAINING |
| 15 | 3090716 | 1 | * RING;CUSHION |
| 21 | 4414671 | 2 | * RING;WEAR |
| 22 | 4414670 | 1 | * RING;SEAL |
| 27 | 4431827 | 1 | * SPRING;COMPRES. |
| 30 | M341245 | 4 | * BOLT;SOCKET |
| 31 | M341260 | 4 | * BOLT;SOCKET |
| 32 | A811035 | 2 | * O-RING |
| 34 | 3088454 | 2 | * CLAMP |
| 35 | 8079053 | 1 | * CLAMP |
| 38 | 4609015 | 4 | * BOLT;SEMS |
| 39 | 4194152 | 1 | * CLAMP;PIPE |
| 41 | 4609833 | 2 | * BOLT;SEMS |
| 45 | 4260203 | 1 | * CAP |
| 46 | J75581 | 1 | * FITTING;GREASE |
| 48 | 4450961 | 1 | * STOPPER |
| 49 | 4450962 | 1 | * BALL |
| 50 | 3095080 | 1 | * PISTON |
| 52 | 4168233 | 2 | * RING;TEFLON |
| 53 | 4455121 | 1 | * PLUNGER |
| 55 | 4467407 | 6 | * WASHER |
| 56 | 4469687 | 6 | * BOLT;SOCKET |
| 60 | 8093661 | 1 | * PIPE |
| 61 | 8093664 | 1 | * PIPE |
| 62 | 8093879 | 1 | * CLAMP |
| 63 | 4222300 | 2 | * CLAMP;PIPE |
| 65 | 4260204 | 1 | * CAP |
| 66 | J901280 | 1 | * BOLT |
| 100 | 9207059 | 1 | KIT;SEAL |
| 100 | 9257550 | 1 | KIT;SEAL |

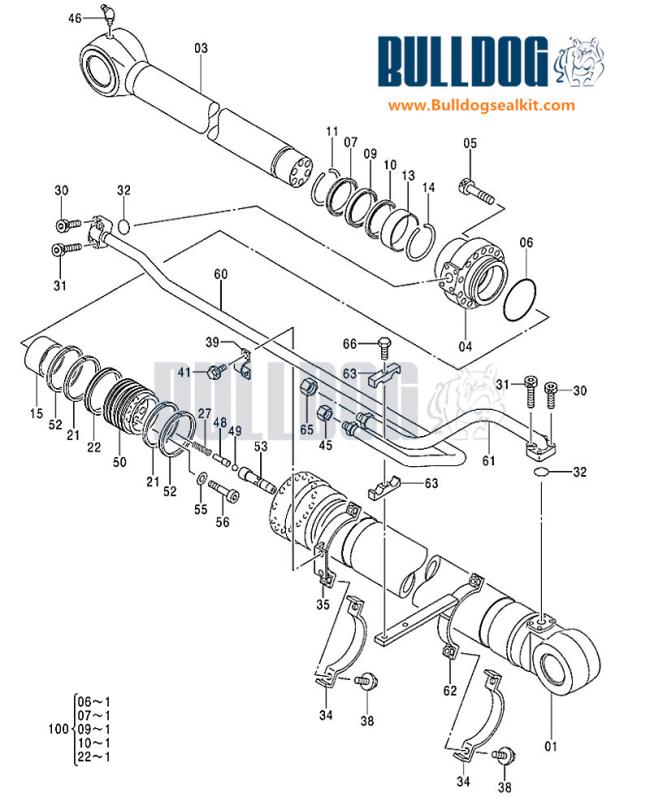

Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
