11709029 EC L150f L150e Wheel Loaders Steering Hydraulic Cylinder Repair Seal Kit
Part number:VOE11709029
Cylinder No:11107333
Rod:50MM
Piston:90MM
For:EC L150F L150E
Material:PU+NBR+PTFE
CertifiCATEEion: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:300
MOQ:1set
Parts list
| NO. | Part Number | Quantity | Product name |
| VOE11107333 | 1 | Hydraulic cylinder | |
| 1 | 1 | •Cylinder tube | |
| 2 | VOE11107343 | 1 | •Piston rod |
| 3 | VOE184062 | 1 | •Spherical plain bearing |
| 4 | VOE914538 | 2 | •Snap ring |
| 5 | VOE11107345 | 1 | •Piston rod guide |
| 6 | VOE11005053 | 1 | •Scraper ring |
| 7 | VOE4784045 | 1 | •Piston rod seal |
| 8 | VOE11107348 | 1 | •Piston rod seal |
| 9 | VOE11088052 | 2 | •Bushing |
| 10 | VOE13925095 | 1 | •O-ring |
| 11 | VOE4880854 | 1 | •Back-up ring |
| 12 | VOE13960175 | 1 | •O-ring |
| 13 | VOE4784427 | 1 | •Piston |
| 14 | VOE4833024 | 1 | •Sealing |
| 15 | VOE4782719 | 1 | •Spring pin |
| 16 | VOE4782857 | 8 | •Screw |
| 17 | VOE941908 | 8 | •Spring washer |
| VOE11709029 | 1 | Sealing kit |

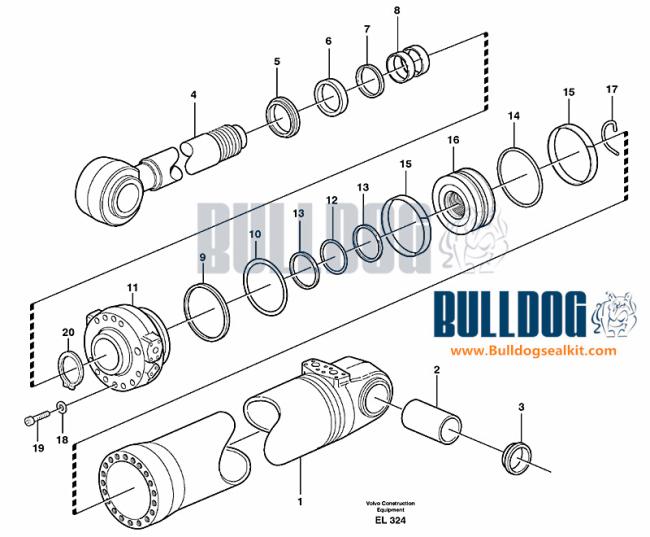

Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
