Fit KOMATSU WB93S-5 Backhoe Loader Boom Cylinder Seal Kits 707-99-41270
707-99-41270 KOMATSU WB93S-5 Backhoe Loader BOOM CYLINDER Seal Kits
Part number:707-99-41270
Cylinder No:707-00-0Y941,707-00-0Y942
Rod:60MM
Piston:120MM
For:KOMATSU WB93S-5 backhoe loader hydraulic cylinder seal kit
Material:PU+NBR+PTFE
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms: T/T, Western Union, MoneyGram, Paypal, Alipay
Delivery method:DHL,FedEx,UPS,etc.
Supply Ability:50
MOQ:1set
Parts list
NO. |
PART NO. | DESCRIPTION | Q'TY |
| 707-00-0Y942 | CYLINDER, ASSEMBLY | 1 | |
| 1 | 707-76-60750 | BUSHING | 1 |
| 2 | 721-58-60580 | ROD, PISTON | 1 |
| 3 | 707-71-91280 | DOWEL | 1 |
| 4 | 07179-12074 | RING, BACK-UP | 1 |
| 5 | 707-29-12500 | HEAD, CYLINDER | 1 |
| 6 | 707-52-90350 | BUSHING | 1 |
| 7 | 707-36-12630 | PISTON | 1 |
| 8 | 01314-20812 | DOWEL | 1 |
| 9 | 707-71-60190 | PLUNGER | 1 |
| 10 | 04260-00635 | BALL, STEEL | 10 |
| 11 | 721-11-12932 | CYLINDER | 1 |
| 12 | 707-76-60740 | BUSHING | 2 |
| 13 | 707-87-25390 | PLUG | 1 |
| 14 | 707-88-36770 | GASKET | 1 |
| 15 | 707-80-13020 | SPRING | 1 |
| 16 | 707-83-13040 | VALVE | 1 |
| 707-99-41270 | KIT, GASKET | 1 | |
| 17 | 07145-00060 | SEAL, DUST | 2 |
| 18 | 141-63-93270 | GASKET | 1 |
| 19 | 07000-12120 | O-RING | 1 |
| 20 | 707-51-60030 | GASKET | 1 |
| 21 | 707-51-60640 | GASKET | 1 |
| 22 | 07146-02116 | RING, BACK-UP | 1 |
| 23 | 07000-12115 | O-RING | 1 |
| 24 | 07000-13042 | O-RING | 1 |
| 25 | 07156-01215 | RING, WEAR | 2 |
| 26 | 707-44-12180 | RING, PISTON | 1 |
| 27 | 02896-11018 | O-RING | 2 |
| 28 | 21D-09-89140 | FITTING, GREASE | 3 |

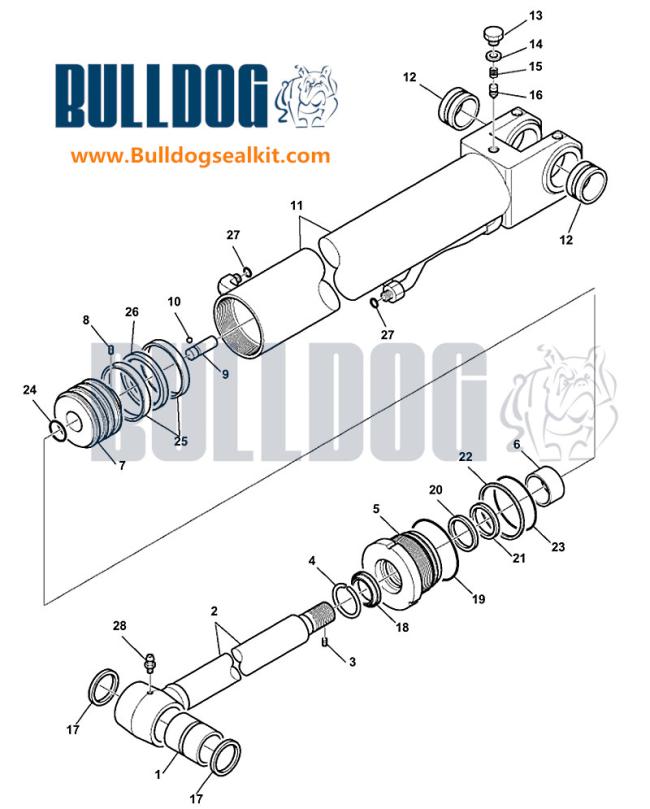

Parts exploded view
More service models
| D65E-12 | |||||||
| LIFT | 14X-63-01063 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-01063 | 65 mm | KOM-707-52-10660 | |||||
| LIFT (TRIMMING) | 14X-63-07011 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-07011 | 65 mm | KOM-707-52-10660 | |||||
| 14X-63-07012 | 65 mm | 95 mm | KOM-707-98-28600 | ||||
| 14X-63-07012 | 65 mm | KOM-707-52-10660 | |||||
| RIPPER | 14X-63-01052 | 70 mm | 140 mm | KOM-707-98-52130 | |||
| 14X-63-01052 | 70 mm | KOM-707-52-10700 | |||||
| TILT | 14Y-63-01032 | 70 mm | 140 mm | KOM-707-98-52140 | |||
| 14Y-63-01033 | 70 mm | 140 mm | KOM-707-98-52140 | ||||
| 707-01-0C300 | 70 mm | 140 mm | KOM-707-98-52210 | ||||
| 707-01-0C301 | 70 mm | 140 mm | KOM-707-99-52160 | ||||
| TRIMMING LH | 14X-63-07030 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07030 | 55 mm | KOM-07177-05530 | |||||
| TRIMMING RH | 14X-63-07040 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07040 | 55 mm | KOM-07177-05530 | |||||
