XKAY-00518 Hydraulic Repair Kits 31N8-40050BG 31N8-40051BG Hydraulic Motor Seal Kit

Price Negotiable
Price: Consultation by letter
MOQ: 1set
Delivery Time: 3-10 Days After Payment received
Brand: BULLDOG,NICEPARTS
Product Description

Hyundai XKAY-00518 Travel motor seal kit for 31N8-40050BG 31N8-40051BG 31N8-40053 31N8-40054 Hydraulic Travel Motor



Model:Hyundai XKAY-00518 Travel motor seal kit
Part number:XKAY-00518
Motor number:31N8-40050BG,31N8-40051BG,31N8-40053,31N8-40054
For:Hyundai R250-7,R110-7,R250-9,R260-9S,R250-7,R140-7
Material:PU+NBR+PTFE
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram, Paypal, Alipay
Delivery method:DHL,FedEx,UPS,etc.
Supply Ability:50
MOQ:1set



Parts list

NO. Part number name quantity
* @ Travel Motor Assy[T] 1
  @ . Travel Motor 1
1 XKAY-01090 .. Casing-Shaft 1
2 XKAY-00443 .. Plug 10
N3 XKAY-00444 .. Seal-Oil 1
*-11 XKAY-00518 .. Seal Kit 1
N4 XKAY-00446 ... Piston-Swash 2
N5 XKAY-00447 ... Ring-Piston 2
6 XKAY-00448 .. Shaft 1
7 XKAY-00449 .. Bearing 1
8 XKAY-00450 .. Ball-Steel 2
9 XKAY-01931 .. Plate-Swash 1
*-12 XKAY-00963 .. Rotary Kit 1
*-121 XKAY-00453 ... Kit-Cylinder Block 1
N10 XKAY-01093 .... Block-Cylinder 1
11 XKAY-00455 .... Seat-Spring 1
12 XKAY-00456 .... Spring 1
13 XKAY-00457 .... Plate-End 1
14 XKAY-00458 .... Ring-Snap 1
15 XKAY-00459 .... Pin 3
70 XKAY-01095 .... Plate-Valve 1
*-122 XKAY-00460 ... Retainer Kit 1
16 XKAY-00461 .... Ballguide 1
17 XKAY-00462 .... Plate-Set 1
*-123 XKAY-00463 ... Piston Kit 1
18 XKAY-01899 .... Piston Assy 9
19 XKAY-00465 .. Plate-Friction 3
20 XKAY-00466 .. Plate 3
21 XKAY-00467 .. Piston-Parking 1
22 XKAY-01395 .. O-Ring 1
23 XKAY-00469 .. Ring-Back Up 1
24 XKAY-01404 .. O-Ring 1
25 XKAY-00471 .. Ring-Back Up 1
26 XKAY-00472 .. Orifice 1
27 XKAY-01405 .. O-Ring 3
28 XKAY-01406 .. O-Ring 1
69 XKAY-00513 .. Bearing 1

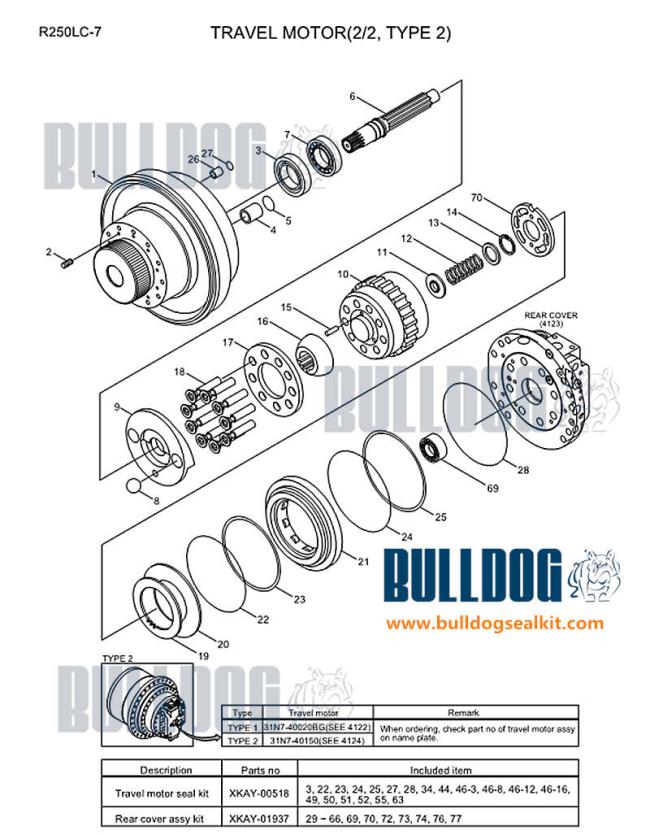

Parts exploded view



More service models

D65E-12
LIFT 14X-63-01063 65 mm 95 mm   KOM-707-98-28600
14X-63-01063 65 mm     KOM-707-52-10660
LIFT (TRIMMING) 14X-63-07011 65 mm 95 mm   KOM-707-98-28600
14X-63-07011 65 mm     KOM-707-52-10660
14X-63-07012 65 mm 95 mm   KOM-707-98-28600
14X-63-07012 65 mm     KOM-707-52-10660
RIPPER 14X-63-01052 70 mm 140 mm KOM-707-98-52130
14X-63-01052 70 mm     KOM-707-52-10700
TILT 14Y-63-01032 70 mm 140 mm KOM-707-98-52140
14Y-63-01033 70 mm 140 mm KOM-707-98-52140
707-01-0C300 70 mm 140 mm KOM-707-98-52210
707-01-0C301 70 mm 140 mm KOM-707-99-52160
TRIMMING LH 14X-63-07030 55 mm 120 mm KOM-707-98-40020
14X-63-07030 55 mm     KOM-07177-05530
TRIMMING RH 14X-63-07040 55 mm 120 mm KOM-707-98-40020
14X-63-07040 55 mm     KOM-07177-05530



Company warehouse



FAQ

1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.

2. Q: Can i make a small order first?
A: Yes, of course.

3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.

4. Q: Have you support the OEM or not?

A: Sure, we support the OEM,BULLDOG or as required.

5. Q: How can i pay the goods?

A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc

6. Q: How to ship the products?

A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.

7. Q: What’s the delivery time?

A: The goods can be shipped at 2-5 working days after receiving payment.
