707-99-59020 Hydraulic Cylinder Repair Kits For PC220-8 PC220LC-8
707-99-59020 Bucket Hydraulic Cylinder Repair Seal Kit FOR Komatsu PC220-8 PC220LC-8 Hydraulic Cylinder Seal Kit
| Product Name | Komatsu PC220-8 PC220LC-8 |
| OEM Number | 7707-99-59020 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Hardness | 100-140 Shore A |
| Brand NAME | BULLDOG |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Weight | 0.6kg |
| Delivery Time | 5-7 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| AppliCATEEion | Komatsu excavator |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 3000 Piece/Pieces per Month |
Parts On Group:
Related Parts:
| Pos. | Part Number | Part Name | QTY |
| G-1 | 707-01-XX020 | CYLINDER GROUP,(FINAL COATING) | 1 |
| 707-01-0C600 | ARM CYLINDER ASS'Y | 1 | |
| 1 | 707-13-16710 | CYLINDER | 1 |
| 2 | 707-76-10130 | BUSHING | 1 |
| 3 | 07145-00100 | SEAL,DUST | 2 |
| 4 | 707-58-11360 | ROD | 1 |
| 5 | 707-76-10130 | BUSHING | 1 |
| 6 | 07145-00100 | SEAL,DUST | 2 |
| 7 | 707-71-32800 | COLLAR | 1 |
| 8 | 707-35-91640 | RING,BACK-UP | 2 |
| 9 | 07000-15150 | O-RING | 1 |
| 10 | 707-71-61130 | PLUNGER | 1 |
| 11 | 707-71-70290 | PLUNGER | 1 |
| 12 | 04260-00635 | BALL | 12 |
| 13 | 707-71-91270 | CAP | 1 |
| 14 | 07020-00000 | FITTING,GREASE | 1 |
| 15 | 707-27-16920 | HEAD | 1 |
| 16 | 198-63-94170 | SEAL,DUST | 1 |
| 17 | 07179-13126 | RING,SNAP | 1 |
| 18 | 707-52-90850 | BUSHING | 1 |
| 19 | 707-51-11030 | PACKING,ROD | 1 |
| 20 | 707-51-11640 | RING,BUFFER | 1 |
| 21 | 707-35-91640 | RING,BACK-UP | 1 |
| 22 | 07000-15150 | O-RING | 1 |
| 23 | 01010-82085 | BOLT | 12 |
| 24 | 707-88-75310 | WASHER | 12 |
| 25 | 707-36-16580 | PISTON | 1 |
| 26 | 01310-01216 | SCREW | 1 |
| 27 | 707-44-16180 | RING,PISTON | 1 |
| 28 | 707-39-16120 | RING,WEAR | 2 |
| 29 | 707-44-16910 | RING | 2 |
| 30 | 07001-05100 | RING,BACK-UP | 2 |
| 31 | 07000-15100 | O-RING | 1 |
| 31A | 707-83-13010 | VALVE | 1 |
| 31B | 07750-01628 | SPRING | 1 |
| 31C | 707-87-14070 | PLUG | 1 |
| 31D | 07002-12034 | O-RING | 1 |
| 32 | 707-86-11600 | TUBE | 1 |
| 33 | 707-86-11610 | BLOCK | 1 |
| 34 | 01435-01055 | BOLT | 4 |
| 35 | 01435-01095 | BOLT | 4 |
| 36 | 07000-13035 | O-RING | 2 |
| 37 | 707-88-22740 | BRACKET | 1 |
| 38 | 707-88-21380 | BAND | 1 |
| 39 | 207-63-64190 | BRACKET | 1 |
| 40 | 707-88-21390 | BAND | 1 |
| 41 | 01435-01235 | BOLT | 4 |
| 42 | 07283-23442 | CLIP | 2 |
| 43 | 01643-31032 | WASHER | 4 |
| 44 | 01599-01011 | NUT | 4 |
| 45 | 707-88-33040 | CAP | 3 |
| 46 | 07371-31049 | FLANGE,SPLIT | 6 |
| 47 | 07372-21035 | BOLT | 12 |
| 48 | 01643-51032 | WASHER | 12 |
| 707-99-59020 | SERVICE KIT | 1 |

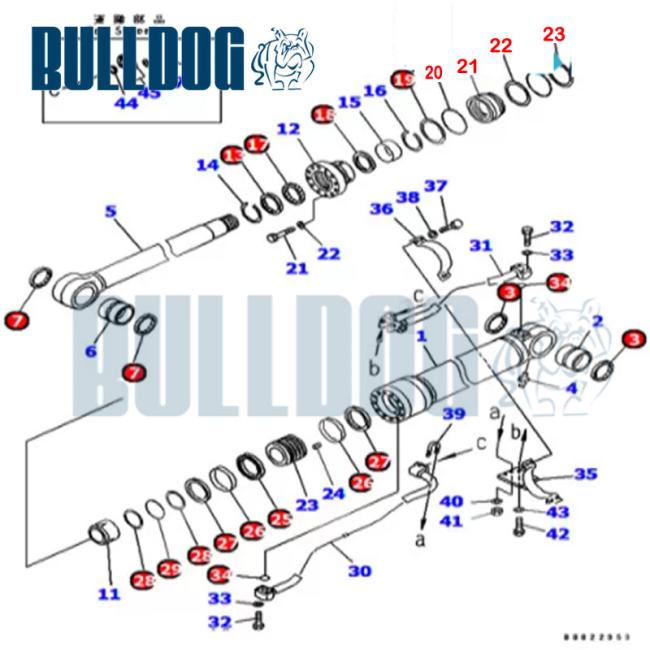

Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
