PP Plastic Tape Extrusion Line HDPE Flat Film Double Die Stretching

Price Negotiable
Price: USD
MOQ: 1 set
Delivery Time: Negotiable
Brand: UW
Product Description

PP HDPE Plastic Extrusion Flat Film Double-die Stretching Production Line For Woven Sack/Chemical Bag/Cement bag/Jumbo Bag/Geo Textile/Tarpaulin




Descripition:
UW-S series plastic extrusion flat film double-die stretching line is specially designed for PP and HDPE with high quality and excellent performance.
Perfect tape quality Lowest consumption Best economic benefit

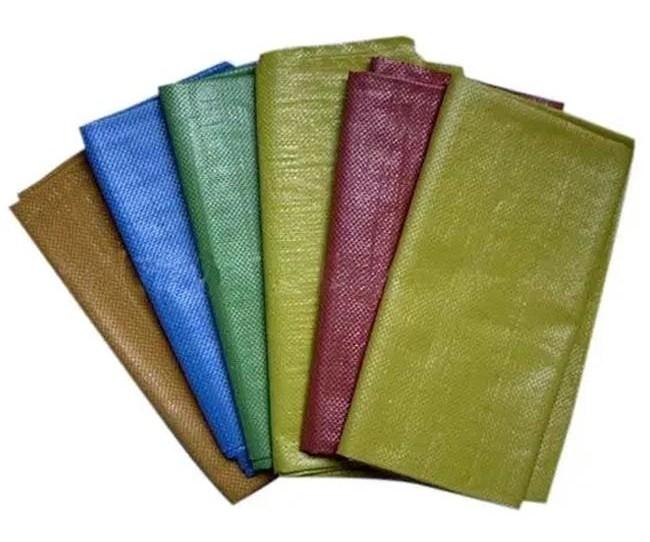

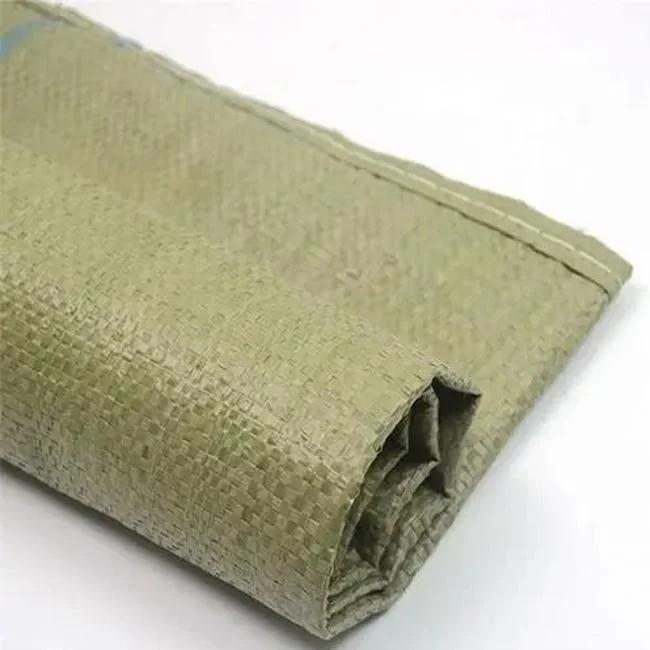

Available: woven sack, chemical bag, foods bag, cement bag, leno bag, jumbo bag, geo textile, tarpaulin.



Technical Parameters:

Item UW-90×33-700/1100 UW-100×33-900/1300 UW-110×33-1100/1350 UW-120×33-1200/1500
Max.extrusion volume 170kg/h 250 kg/h 330kg/h 400 kg/h
Screw Dia 90mm 100mm 110mm 120mm
Ratio of L/D 33:1 33:1 33:1 33:1
Rotate speed of screw 20-120r/min
Length of mold lip 700/1100mm 900/1330mm 1000/1350mm 1200/1500mm
Line speed 230m/min
Flat yarn fibre scope 60-230tex
Drawing ratio 4-10
Winder 136 Spindles 184 Spindles 212 Spindles 240 Spindles



Applications:





FAQ:



1. How long will your engineer reach our factory?

Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)



2. How many days will you finish installing?

We will finish installation and training within 15 days.



3. What should we charge for your engineer?

You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.



4. How long is your machine's warranty period?

All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.



5. How could you do if the parts broken within warranty?

We would express the free replacement parts during the warranty date



6. How could you do after one year warranty period?

We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.



7. What is your terms of payment ?
30% T/T in advance ,balance before shipment.
