42hs40 42mm 12v Nema 17 Two Phase Stepper Motor For 3d Printer 1.2A 5.2Kgcm
Motor Specification
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | 0.16 |
| 42HS34-0404 | 1.8 | 12.0 | 0.4 | 30 | 35 | 3.2 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS40-0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-0804 | 1.8 | 5.4 | 0.8 | 6.8 | 12 | 4.5 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1204 | 1.8 | 6.6 | 1.2 | 5.5 | 11 | 5.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1704 | 1.8 | 3.4 | 1.7 | 2 | 3 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |
| 42HS48-0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1004 | 1.8 | 4.5 | 1 | 4.5 | 10 | 5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-0406 | 1.8 | 12.0 | 0.4 | 30 | 28 | 3.2 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 80 | 52 | 4 | 0.45 |
| 42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | 0.55 |

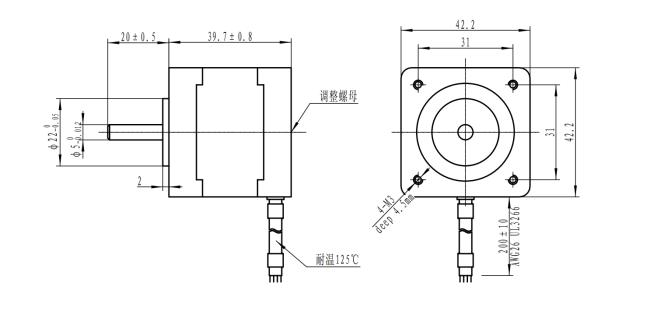

Motor Dimension
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
.
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, WesternUnion, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we canproduce suitable drivers for all the motors. And we always research and develop new products.
