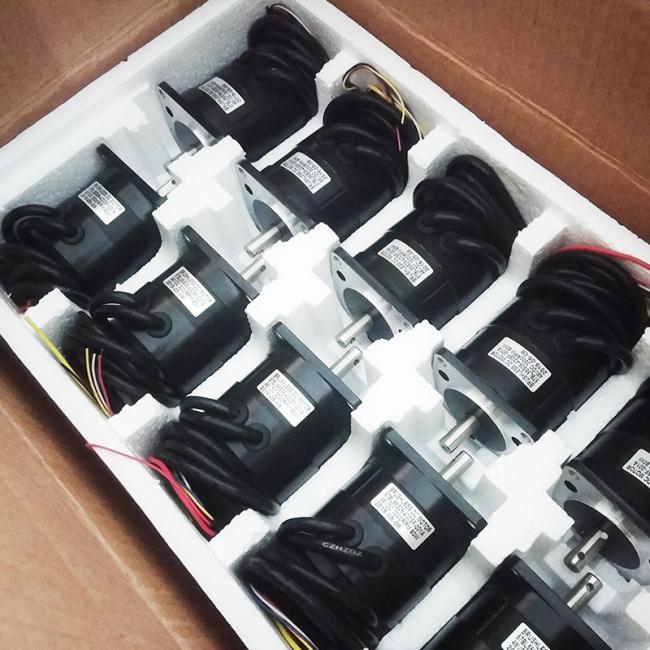

80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
Price:
USD$57.4~63.4/pcs
MOQ:
10
Delivery Time:
15days
Brand:
JSS
Product Description
CE 80mm brushless dc motor 669W 4000rpm 220VAC with for medical instrument
Product Description
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.03mm |
| Radial play | 0.03mm/50g |
| End play | 0.03mm/50g |
| Max radial force | 35N/20mm from the flange |
| Max axial force | 30N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (N.m) | Rated Power (W) | Mass (Kg) | Body Length (mm) |
| DW90BLDC73-48200 | 3 | 48 | 3000 | 0.67 | 200 | 2.10 | 73 |
| DW90BLDC103-48400 | 3 | 48 | 3000 | 1.34 | 400 | 3.30 | 103 |
| DW90BLDC103-48401 | 3 | 48 | 3000 | 2.01 | 600 | 4.50 | 133 |
Dimensions:
(Unit=mm)
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Certifications:
