110HS Hybrid Stepper Motor Nema 42 30N.M 2-Phase 220VAC Industrial Big Size
Price:
negotable
MOQ:
1PCS
Delivery Time:
1-15days
Brand:
JSS-MOTOR
Product Description
Industrial Big Size 110mm Nema 42 Hybrid Step Motor 110HS 30N.M 2-Phase 220VAC
| Model No | Step Angle(°) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (N.M) | Rotor Inertia (Kg.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 110HS201-8004 | 1.8 | 8 | 0.71 | 15.38 | 33 | 330 | 201 | 4 | 11.7 |
Our main products:
Hybrid stepper motor
Stepper driver for all the motors
Step easy servo motor and driver
stepper motor with lead screw
stepper motor with gearbox
stepper motor with brake
Applications:
Stepper motor are widely used in packing machine, cnc router, automatic industrial machine, mechanical robot arm, cutting machine, plotting machine, laser machine and other automatic system.
NEMA 42 2-phase 1.8° hybrid stepper motor
Specification:
| Step Angel | 1.8° |
| Temperature Rise | 80℃ |
| Ambient Temperature | -20℃ Max ~ +50℃ |
| Isulation Resistence | 100MΩ min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max (450g-load) |
| Shaft Axial Play | 0.08 Max (450g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
Electrical Specifications:
| Model No | Step Angle(°) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (N.M) | Rotor Inertia (Kg.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 110HS99-5504 | 1.8 | 5.5 | 0.72 | 10.9 | 11 | 108 | 99 | 4 | 5 |
| 110HS115-6004 | 1.8 | 6 | 0.44 | 7.17 | 12 | 132 | 115 | 4 | 6.2 |
| 110HS150-6504 | 1.8 | 6.5 | 0.72 | 12.8 | 20 | 210 | 150 | 4 | 8.4 |
| 110HS168-6004 | 1.8 | 6 | 0.9 | 16 | 24 | 240 | 168 | 4 | 9.8 |
| 110HS201-8004 | 1.8 | 8 | 0.71 | 15.38 | 33 | 330 | 201 | 4 | 11.7 |

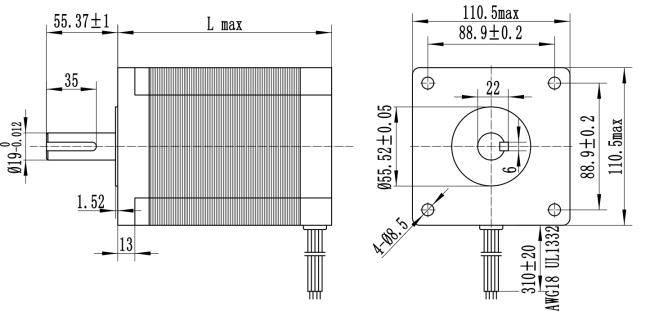

Dimensions:
