Engraving Machine Air Cooler Spindle Motor Square Shape 1.5kw 18000rpm Spindle
engraving machine air cooler spindle motor square shape 1.5kw 18000rpm spindle
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor for several years. We have two our own production base and a strong R&D team.
Till now, JSS has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers.
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
Product Features
speed:18000rpm
power :1.5Kw
size:93*82
The datasheet of our water cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| square | GDZ93*82-1.5 | 18000 | 1.5 | 220 380 | 6.6 3.8 | 300 | 45 | 30 | 20 | ER20 | 137 | 44.5 | 37 | 6 |
| GDZ93*82-2.2 | 18000 | 2.2 | 220 380 | 8 4.6 | 300 | 45 | 30 | 37 | ER25 | 173 | 48.5 | 37 | 8 | |
| GDZ93*82-3.5 | 18000 | 3.5 | 220 380 | 13 7.5 | 300 | 45 | 30 | 37 | ER25 | 214 | 48.5 | 37 | 9 | |
| GDZ120x103-4.5 | 18000 | 4.5 | 220 380 | 17.3 10 | 300 | 60 | 36 | 25 | ER32 | 190 | 56.5 | 46.5 | 13 | |
| GDZ120*103-6 | 18000 | 6 | 220 380 | 20.8 12 | 300 | 60 | 36 | 40 | ER32 | 233 | 56.5 | 46.5 | 15 | |
| GDZ120*103-7.5 | 18000 | 7.5 | 380 | 14.5 | 300 | 60 | 36 | 13 | ER32 | 272 | 56.5 | 46.5 | 18 | |
| GDZ170*150-12 | 18000 | 12 | 380 | 22 | 300 | 60 | 50 | 30 | ER32orER40 | 279 | 67.5 | 41 | 28 | |

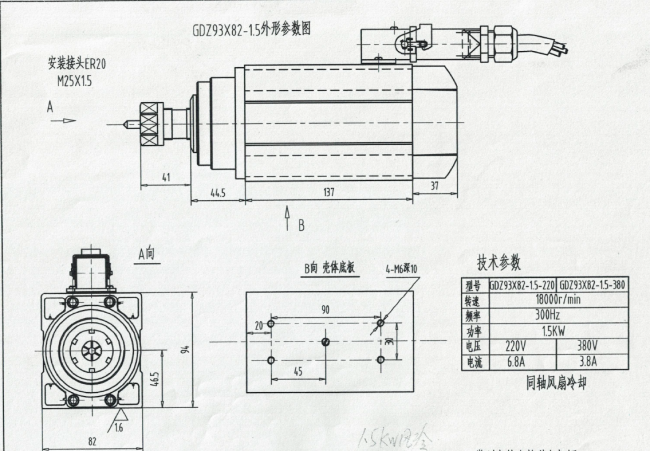

Motor size :
Suitful pairs:
