GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm
Cutting Plotter Spindle Motor Air Cooled Square Shape 2.2kw 18000rpm Spindle
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
Product Features
speed:18000rpm
power :2.2Kw
Voltage :220V or 380V
size:93*82
The datasheet of our water cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| square | GDZ93*82-1.5 | 18000 | 1.5 | 220 380 | 6.6 3.8 | 300 | 45 | 30 | 20 | ER20 | 137 | 44.5 | 37 | 6 |
| square | GDZ93*82-2.2 | 18000 | 2.2 | 220 380 | 8 4.6 | 300 | 45 | 30 | 37 | ER25 | 173 | 48.5 | 37 | 8 |

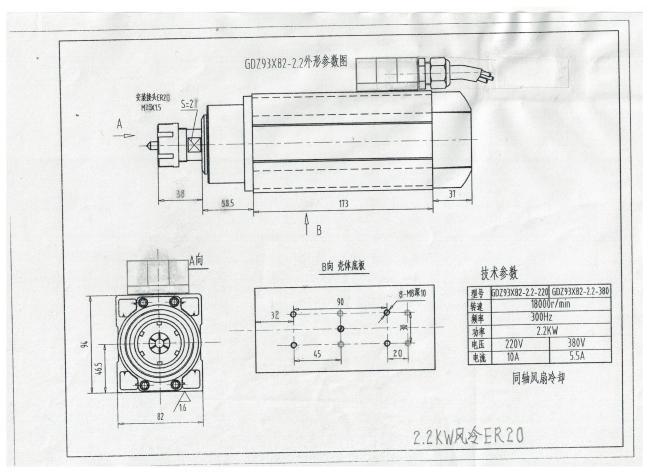

Motor size :
Suitful pairs:
