Cnc Router Plotter Square ER25 Spindle Motor 18000rpm 3.5kw Gdz93x82-3.5
engraving cnc route plotter square spindle motor 3.5kw 18000rpm
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
Product Features
speed:18000rpm
power :3.5Kw
Voltage :220V or 380V
size:93*82
collet: ER25
The datasheet of our air cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| round | GDZ65F-800 | 24000 | 0.8 | 220 | 4 | 400 | 65 | ER11 | 182.5 | 15 | 28.5 | 3 | ||
| GDZ80F-1.5 | 24000 | 1.5 | 220 | 5 | 400 | 80 | ER11 | 193.5 | 9 | 26 | 4.4 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | 80 | ER16 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | 80 | ER20 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| square | GDZ93*82-1.5 | 18000 | 1.5 | 220 380 | 6.6 3.8 | 300 | 45 | 30 | 20 | ER20 | 137 | 44.5 | 37 | 6 |
| square | GDZ93*82-2.2 | 18000 | 2.2 | 220 380 | 8 4.6 | 300 | 45 | 30 | 37 | ER25 | 173 | 48.5 | 37 | 8 |
| square | GDZ93*82-3.5 | 18000 | 3.5 | 220 380 | 13 7.5 | 300 | 45 | 30 | 37 | ER25 | 214 | 48.5 | 37 | 9 |

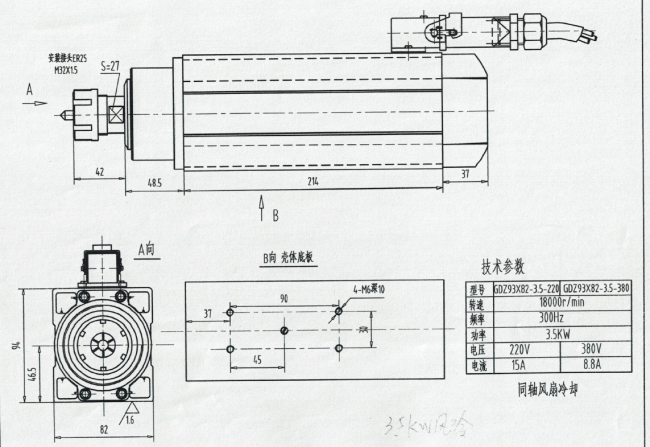

Motor size :
Suitful pairs:
