CNC Machine Square Spindle Motor 4.5kw 18000rpm GDZ120x103-4.5
CNC machine square spindle motor 4.5kw 18000rpm GDZ120*103-4.5
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
Product Features
speed:18000rpm
power :4.5Kw
Voltage :380V
size:120*103mm
collet: ER32
The datasheet of our air cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| square | GDZ120x103-4.5 | 18000 | 4.5 | 220 380 | 17.3 10 | 300 | 60 | 36 | 25 | ER32 | 190 | 56.5 | 46.5 | 13 |
| square | GDZ120*103-6 | 18000 | 6 | 220 380 | 20.8 12 | 300 | 60 | 36 | 40 | ER32 | 233 | 56.5 | 46.5 | 15 |
| square | GDZ120*103-7.5 | 18000 | 7.5 | 380 | 14.5 | 300 | 60 | 36 | 13 | ER32 | 272 | 56.5 | 46.5 | 18 |
| square | GDZ170*150-12 | 18000 | 12 | 380 | 22 | 300 | 60 | 50 | 30 | ER32orER40 | 279 | 67.5 | 41 | 28 |

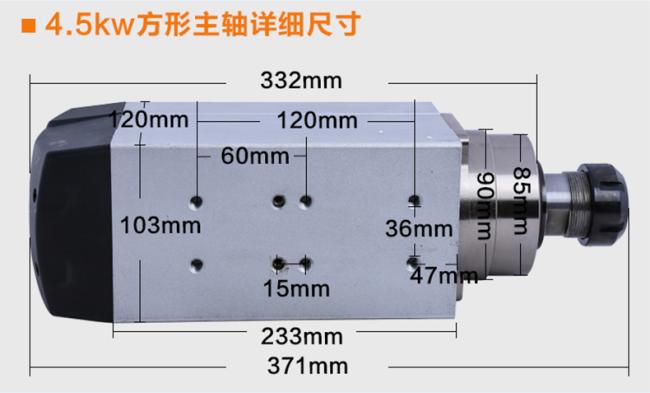

Motor size :
Suitful pairs:
