air cooled er32 spindle motor 6kw Engraving Machine Cutting Square gdz120x103-6
engraving machine cutting square spindle motor 6kw ER32 GDZ120*103-6
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Product Features
speed:18000rpm
power :6Kw
Voltage :380V
size:120*103mm
collet: ER32
The datasheet of our air cooling spindle motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight(kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| square | GDZ120*103-6 | 18000 | 6 | 220 380 | 20.8 12 | 300 | 60 | 36 | 40 | ER32 | 233 | 56.5 | 46.5 | 15 |
| square | GDZ120*103-7.5 | 18000 | 7.5 | 380 | 14.5 | 300 | 60 | 36 | 13 | ER32 | 272 | 56.5 | 46.5 | 18 |
| square | GDZ170*150-12 | 18000 | 12 | 380 | 22 | 300 | 60 | 50 | 30 | ER32orER40 | 279 | 67.5 | 41 | 28 |

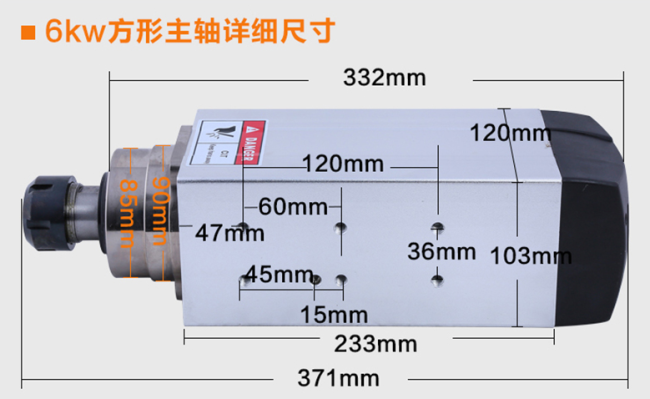

Motor size :
Suitful pairs:
