ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5
Price:
negotable
MOQ:
1PCS
Delivery Time:
1-15days
Brand:
JSS-MOTOR
Product Description
Wood Engraving Air Cooling Spindle Motor 18000RPM 220VAC ER25 Collect 4 Bearings
We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
3.5KW water cooling Spindle motor
Features:
High accuracy
Low noise
High rigidity
Long using life
Datasheet:
| Model No | Speed (R/Min) | Power (KW) | Voltage (V) | Current (A) | Frequency (HZ) | Joint of nose | Lubrication | cooling type | Bearing Type | Weight (KG) |
| GDZ80*73-1.5 | 24000 | 1.5 | 220 | 5 | 400 | ER11 | Grease | Air-Cooling | 2*7002 2*7002 | 6 |
| GDZ80*73-2.2 | 24000 | 2.2 | 220 | 6 | 400 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 8 |
| GDZ105*102-3.5 | 18000 | 3.5 | 380 220 | 7.5 15 | 300 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 9 |
| GDZ120*103-5.0 | 18000 | 5 | 380 | 12 | 600 | ER32 | Grease | Air-Cooling | 2*7008 P4 2*7004 P4 | 13 |
| GDZ93*82-1.5 | 18000 | 1.5 | 380 220 | 3.8 6.8 | 300 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 8 |
| GDZ93*82-2.2 | 18000 | 2.2 | 380 220 | 5.5 10 | 300 | ER25 | Grease | Air-Cooling | 2*7007 P4 2*7002c P4 | 8 |
| GDZ93*82-3.5 | 18000 | 3.5 | 380 220 | 8.8 15 | 300 | ER25 | Grease | Air-Cooling | 2*7007 P4 2*7002c P4 | 9 |
| GDZ120*103-4.5 | 18000 | 4.5 | 380 | 9.5 | 300 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 13 |
| GDZ120*103-6.0 | 18000 | 6 | 380 | 12.6 | 300 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 15 |
| GDZ120*103-7.5 | 18000 | 7.5 | 380 | 17 | 600 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 16 |

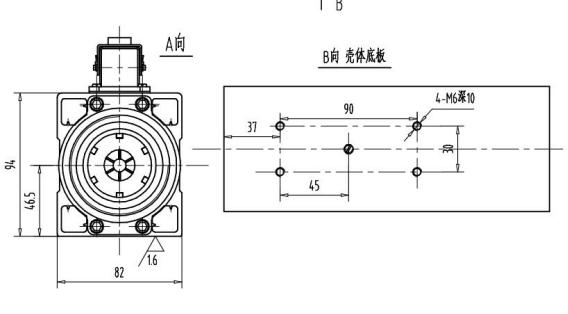

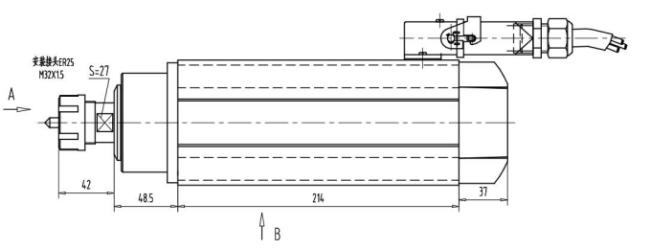

Dimensions:
Application:
