Nema 34 Brake Stepper Motor Permanent Magnet Brake 118mm 14mm shaft 24V
Nema 34 Stepper Motor With Brake Permanent Magnet Brake 24V Whole Kit
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by JSS people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
Stepper motor with brake:
Brake parameter:
|
Brake Model |
Input Voltage |
Power |
Diameter |
Brake Length |
Brake Torque |
Suitable motor |
Weight |
| 35 | 24V | 5.8W | 40mm | 26mm | 0.35N.m | 42HSB | 0.15KG |
| 50 | 24V | 4.8W | 50mm | 31.5mm | 1.5N.m | 57HSB | 0.33KG |
| 56 | 24V | 9.3W | 61mm | 37.5mm | 3.9N.m | 86HSB | 0.506KG |

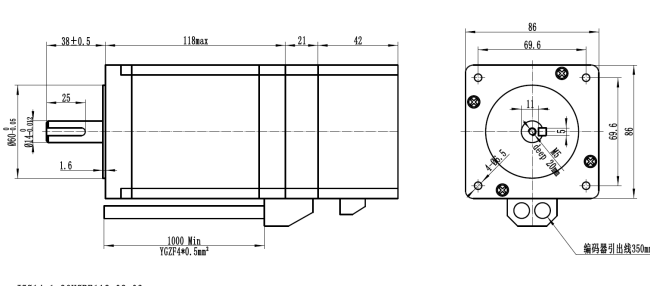

Dimensions:
nema 34 motor parameter:
| Model No | Step Angle() | Rated Voltage(V) | Rated Current (A) | Phase Resistance() | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2000 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products,products of special request can be made according to the customer request. | |||||||||||
