Hybrid Electric Linear Actuator Stepper Motor Nema 17 4.2kg.Cm 300mm External Type
Nema 17 Linear Stepper Motor 3d Printer External Type 300mm
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Lead screw dimensions:
| Diameter | lead distance(mm) | start | step length(mm) | Suitable motor type |
| Tr5 | 2 | 2 | 0.02 | 42HSL-E, 42HSL-N |
| Tr6.5 | 3 | 2 | 0.015 | 42HSL-E, 42HSL-N |
| Tr8 | 2 | 1 | 0.01 | 42HSL-E, 42HSL-N |
| Tr8 | 4 | 2 | 0.02 | 42HSL-E, 42HSL-N |
| Tr8 | 8 | 4 | 0.04 | 42HSL-E, 42HSL-N |
| Tr10 | 2 | 1 | 0.01 | 42HSL-E |
| Tr10 | 4 | 2 | 0.02 | 42HSL-E |
Stepper motor data sheet:
| Model No | Step Angle() | Rated Voltage(V) | Rated Current (A) | Phase Resistance() | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque(g.cm Max) | Rotor Inertia (g.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 42HS34-0404 | 1.8 | 12 | 0.4 | 30 | 35 | 3.2 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS40-0404 | 1.8 | 12 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-0804 | 1.8 | 5.4 | 0.8 | 6.8 | 12 | 4.5 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1204 | 1.8 | 6.6 | 1.2 | 5.5 | 11 | 5.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1704 | 1.8 | 3.4 | 1.7 | 2 | 3 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1206 | 1.8 | 4 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |

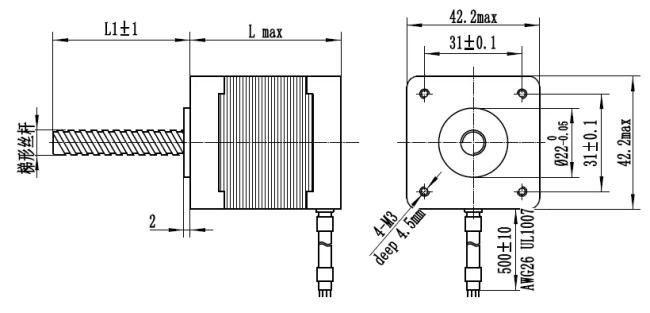

Motor dimensions:
