48v Double Shaft Brushless Dc Motor 500w 80mm 3000RPM For Chenille Machine
48v double shaft Brushless Dc Motor 500w 80mm 3000RPM for Chenille Machine
Brushless dc motor features:
High speed
Long using life
Low cost
Low interference
High efficiency
Low noise
Energy Saving
80mm brushless dc motor:
Specifications:
Winding type: Star/Delta
Hall effect angle: 120 degree electrice angle
Shaft runout: 0.025mm
Radial play: 0.02mm/50g
End play: 0.08mm/50g
Max radial force: 28N/20mm from the flange
Max axial force: 60N
Insulation class: Class B
IP class: IP40
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩmin 500VDC
Electrical Specification:
| Model | Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
Rated Torque (N.m) |
Peak Torque (N.m) |
Rated Speed (RPM) |
Length (mm) |
Mass (kg) |
| 80BL100-430 | 48 | 7 | 251 | 0.8 | 2.4 | 3000 | 105 | 1.6 |
| 80BL120-430 | 48 | 10.5 | 377 | 1.2 | 3.6 | 3000 | 125 | 2.5 |
| 80BL140-430 | 48 | 14 | 502 | 1.6 | 4.8 | 3000 | 145 | 3 |
| 80BL100-640 | 310 | 1.4 | 335 | 0.8 | 2.4 | 4000 | 105 | 1.6 |
| 80BL120-640 | 310 | 2.2 | 502 | 1.2 | 3.6 | 4000 | 125 | 2.5 |
| 80BL140-640 | 310 | 2.9 | 669 | 1.6 | 4.8 | 4000 | 145 | 3 |
Electrical Connection:
| Lead No. | Lead color | Lead gauge | Function | Description | ||||
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow | PHASE U | MOTOR PHASE U | |||||
| 2 | Green | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue | PHASE W | MOTOR PHASE W | |||||

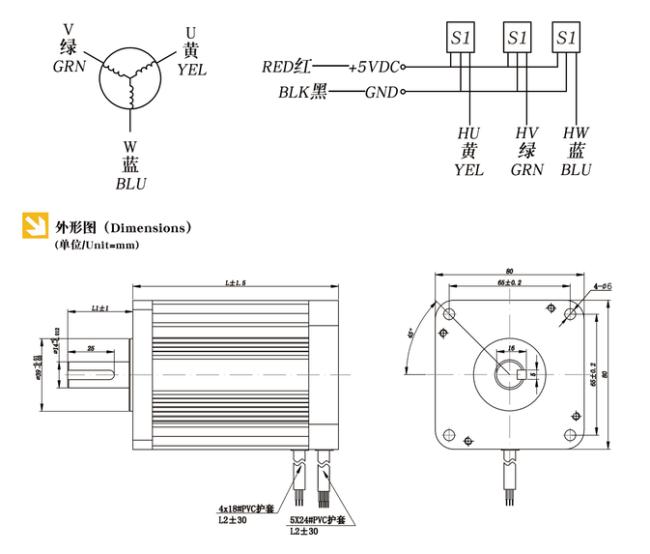

Diagram:
We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor. Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
Applications:
Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, drone etc.
