310VDC 220VAC 110mm Dc Brushless Electric Motorcycle Motor 2000RPM 1255W
310VDC 220VAC 110mm Dc Brushless Electric Motorcycle Motor 2000RPM 1255W
Specification:
- Part Number: 110BL165-620
- Phase: 3
- Rated Voltage: 310VDC
- Rated Speed: 2000RPM
- Rated Torque: 6Nm
- Rated Current: 5.4A
- Rated Power: 1255W
- Insulation Class: Class B
- Insulation Resistance: 100MΩ Min @500VDC
- Dielectric Strength Test: 500VAC for 1 Minute
- Frame Size: 110*110mm
- Number of Leads: 8
- Weight: 9.5kg
Brushless dc motor features:
High speed
Long using life
Low cost
Low interference
High efficiency
Low noise
Energy Saving
We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor.
Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
Applications:
Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, drone etc.
80mm brushless dc motor:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.02mm/50g |
| End play | 0.08mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 60N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
Rated Torque (N.m) |
Peak Torque (N.m) |
Rated Speed (RPM) |
Length (mm) |
Mass (kg) |
| 110BL140-620 | 310 | 3.6 | 836 | 4 | 12 | 2000 | 140 | 7.5 |
| 110BL165-620 | 310 | 5.4 | 1255 | 6 | 18 | 2000 | 165 | 9.5 |
| 110BL180-620 | 310 | 7.2 | 1673 | 8 | 24 | 2000 | 180 | 10.5 |
| 110BL140-630 | 310 | 5.4 | 1255 | 4 | 12 | 3000 | 140 | 7.5 |
| 110BL165-630 | 310 | 8.1 | 1883 | 6 | 18 | 3000 | 165 | 9.5 |
| 110BL180-630 | 310 | 10.8 | 2510 | 8 | 24 | 3000 | 180 | 10.5 |
Electrical Connection:
| Lead No. | Lead color | Lead gauge | Function | Description | ||||
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow | PHASE U | MOTOR PHASE U | |||||
| 2 | Green | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue | PHASE W | MOTOR PHASE W | |||||

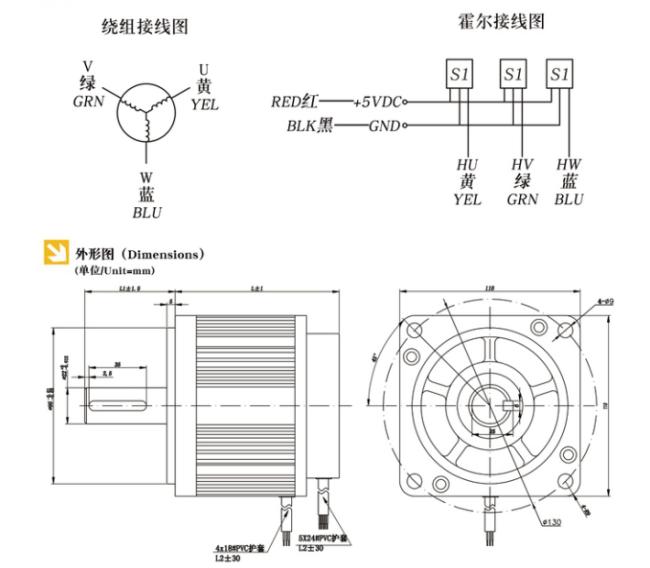

Diagram:
Brushless dc motor features:
High speed
Long using life
Low cost
Low interference
High efficiency
Low noise
Energy Saving
