Engarving Machine Air-Cooled Series-Automatic Tool Change Spindle Motor 9kw
Engarving Machine Air-Cooled Series-Automatic Tool Change Spindle Motor 9kw
Company information:
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
Application:
Cutting Machine,Router machine , Engarving Machine, Milling Machine,
Date sheet
| Model | Speed(R/min) | Voltage(V) | Power(Kw) | Current(A) | Frequency(HZ) | Lubrication | Joint of nose | Cooling type | Bearing type | Weight |
| GDZ143*133-9 ATC | 24000 | 380 | 9.0 | 18 | 800 | Grease | ISO30 | Air-cooling | 2*7008//2*7006 | 26 |

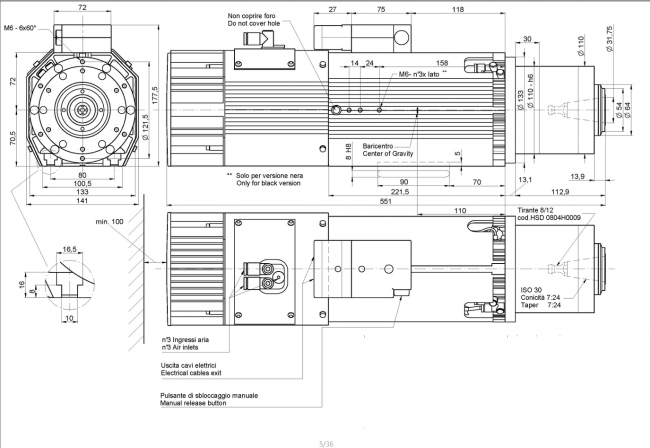

Dimensions(mm):
