Cutting Plotter Spindle Motor Air Cooled 3.5kw double-end spindle motor
Cutting Plotter Spindle Motor Air Cooled 3.5kw double-end spindle motor
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
Product Features
speed:18000rpm
power :3.5Kw
Voltage :380V
size:93*82
The datasheet of our water cooling spindle motor
| Model | Speed(R/min) | Voltage(V) | Power(Kw) | Current(A) | Frequency(HZ) | Lubrication | Joint of nose | Cooling type | Bearing type | Weight |
| GDZ93*82-3.5D | 18000 | 380 | 3.5 | 88 | 300 | Grease | ER25 | Air-cooling | 2*7007 P4 | 13 |

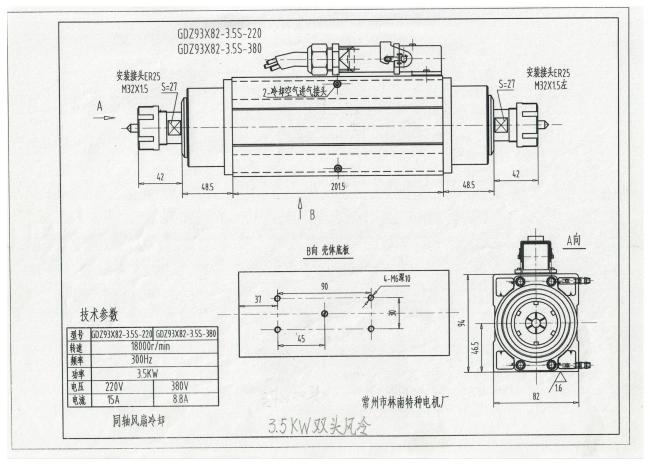

Motor size :
Suitful pairs:
