28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
Micro Nema 11 Stepper Motor 0.67A 28HS32 Two Phase 0.06N.M Chip Mounter Machine
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(g) |
| 28HS32-0674 | 1.8 | 3.88 | 0.67 | 5.8 | 3.2 | 600 | 9 | 32 | 4 | 110 |
High-quality raw material
High-specification permanent magnet silicon steel
High positioning accuracy, output torque,
Fast response, low noise and low vibration.
Applications:
Stepper motor are widely applied in 3D printer, mini cnc router, engraving machine, textile machine, medical equipment, stage light equipment, robotic, CNC router, music fountain, and other industrial automatic equipment.
Our main products include from size NEMA 8, NEMA11, NEMA14, NEMA16, NEMA17, NEMA 23, NEMA24, NEMA 34, NEMA 42, NEMA52 series hybrid stepper motor, and variable sizes linear stepper motor, geared stepper motor, stepper motor with brake. And we have products about easy servo system of nema17, nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we are always researching and developing new products.
NEMA 11 2-phase 1.8° hybrid stepper motor
Specification:
| Step Angel | 1.8° |
| Temperature Rise | 80℃ |
| Ambient Temperature | -20℃ Max ~ +50℃ |
| Isulation Resistence | 100MΩ min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max (450g-load) |
| Shaft Axial Play | 0.08 Max (450g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
Electrical Specifications:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(g) |
| 28HS28-0354 | 1.8 | 4.2 | 0.35 | 12 | 5.8 | 450 | 6 | 28 | 4 | 105 |
| 28HS28-0604 | 1.8 | 2.52 | 0.6 | 4.2 | 2.2 | 450 | 6 | 28 | 4 | 105 |
| 28HS32-0674 | 1.8 | 3.88 | 0.67 | 5.8 | 3.2 | 600 | 9 | 32 | 4 | 110 |
| 28HS45-0674 | 1.8 | 4.56 | 0.67 | 6.8 | 4.9 | 950 | 12 | 45 | 4 | 140 |
| 28HS51-0674 | 1.8 | 3.2 | 0.67 | 9.2 | 7.2 | 1200 | 18 | 51 | 4 | 200 |

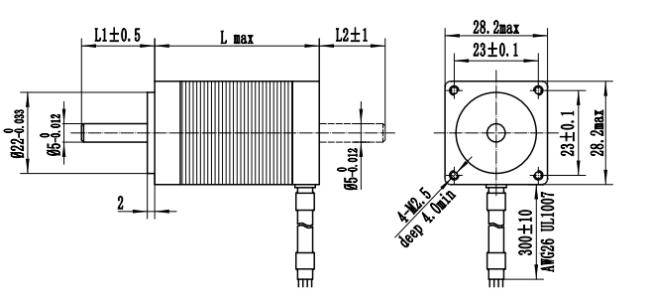

Dimensions:

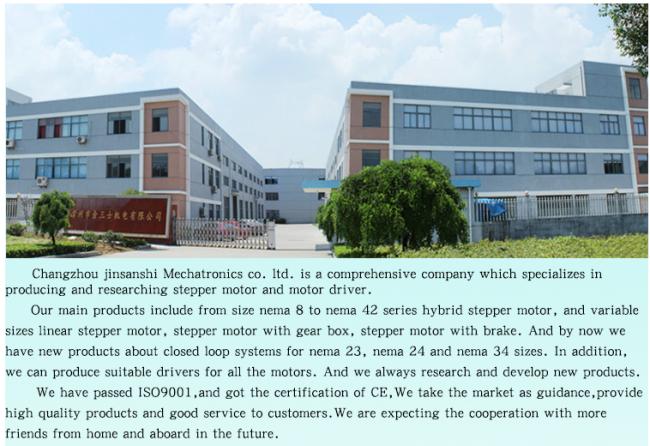

Company information:

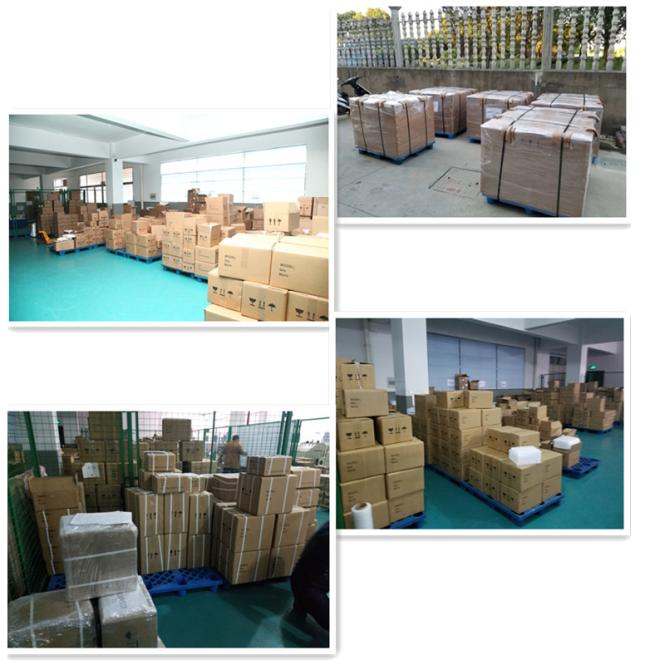

Packing:
