Digital Stepper Motor Driver Small Size Motor 20-40V 2.2A Low Noise


Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.


Features:
1. The DM422D is a new generation high-performance digital stepper driver based on DSP with advanced control algorithm.
2. The motors driven by DM422D can run with much smaller noise and much less vibration than other drivers in the market.
3. The DM422D possess the feature of lower noise, lower vibration, and lower heating.
4. The DM422D’s voltage is DC 20V-40V. It is suitable for all the 2 phases hybrid stepper motor whose current is less than 2.2A.
5. The maximum step number of DM422D is 6400 steps/rev.
6. Its current range 0.5A-2.2A.
7. DM422D has automatic semi-flow, over-voltage, under voltage and over-current protection function.

Application:



Current selection

Microstep selection

Default: The pulse can be customized according to customers’ requirements.
Common indicator

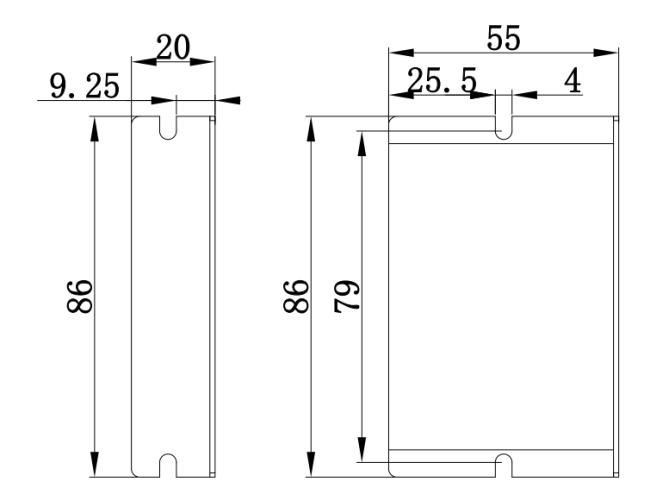

Dimensions:
