Gdz-80 X 73-2.2 2.2kw Air Cooled Cnc Spindle Motor ER20 With Mounting Plate
Price:
negotable
MOQ:
1PCS
Delivery Time:
1-15days
Brand:
JSS-MOTOR
Product Description
Square Air With Fin 2.2KW Air Cooled Spindle Motor 220VAC ER20 24000RPM
2.2KW air cooling Spindle motor
Features:
Dust-proof, durable, high precison with ER20 collect.
It is with flange, easy to assemable.
The products are made of high quality aluminum material and high quality bearings.
High accuracy, Low noise, High rigidity , Long using life
Datasheet:
| Model No | Speed (R/Min) | Power (KW) | Voltage (V) | Current (A) | Frequency (HZ) | Joint of nose | Lubrication | cooling type | Bearing Type | Weight (KG) |
| GDZ80*73-1.5 | 24000 | 1.5 | 220 | 5 | 400 | ER11 | Grease | Air-Cooling | 2*7002 2*7002 | 6 |
| GDZ80*73-2.2 | 24000 | 2.2 | 220 | 6 | 400 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 8 |
| GDZ105*102-3.5 | 18000 | 3.5 | 380 220 | 7.5 15 | 300 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 9 |
| GDZ120*103-5.0 | 18000 | 5 | 380 | 12 | 600 | ER32 | Grease | Air-Cooling | 2*7008 P4 2*7004 P4 | 13 |
| GDZ93*82-1.5 | 18000 | 1.5 | 380 220 | 3.8 6.8 | 300 | ER20 | Grease | Air-Cooling | 2*7005 2*7002 | 8 |
| GDZ93*82-2.2 | 18000 | 2.2 | 380 220 | 5.5 10 | 300 | ER25 | Grease | Air-Cooling | 2*7007 P4 2*7002c P4 | 8 |
| GDZ93*82-3.5 | 18000 | 3.5 | 380 220 | 8.8 15 | 300 | ER25 | Grease | Air-Cooling | 2*7007 P4 2*7002c P4 | 9 |
| GDZ120*103-4.5 | 18000 | 4.5 | 380 | 9.5 | 300 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 13 |
| GDZ120*103-6.0 | 18000 | 6 | 380 | 12.6 | 300 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 15 |
| GDZ120*103-7.5 | 18000 | 7.5 | 380 | 17 | 600 | ER32 | Grease | Air-Cooling | 2*7008c P4 2*7004c P4 | 16 |

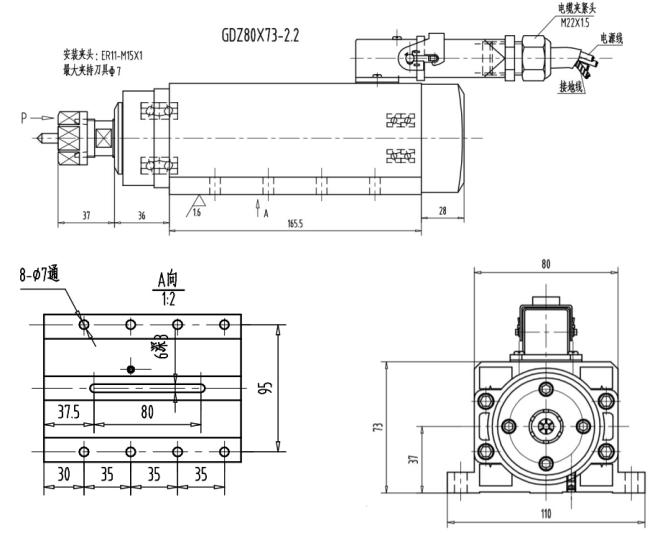

Dimensions:
Application:
