gdz-80-1.5 Er11 CNC Spindle Motor 1.5kw Air Cooled Ac 220v Cnc Spindle Kit
Price:
negotable
MOQ:
1PCS
Delivery Time:
1-15days
Brand:
JSS-MOTOR
Product Description
1.5KW ER11 Air Cooled Ac Cnc Spindle Motor 220v CNC SPINDLE KIT
Motor Parameters:
Size :80mm diameter
Power : 1.5Kw
Voltage : AC220V
Frequency : 400Hz
Speed : 24000rpm
Current : 5A
Cooling Type: air cooling
Runout off : less than 0.01mm
Bearing : 2*7002 2*7002
Lubrication : Grease Lubrication
Collet:ER11
Lubrication: Grease
Weight: 5kg
Datasheet:
| Model No | Speed (R/Min) | Power (KW) | Voltage (V) | Current (A) | Frequency (HZ) | Joint of nose | Lubrication | cooling type | Bearing Type | Weight (KG) |
| GDZ65F-800 | 24000 | 0.8 | 220 | 5.5 10 | 400 | ER11 | Grease | Air-Cooling | 2*7002 P4 DT 2*7000 P4 DT | 2.5 |
| GDZ80/1.5F | 24000 | 1.5 | 220 | 5 | 400 | ER11 | Grease | Air-Cooling | 2*7002 2*7002 | 5 |
| GDZ80/1.5F | 24000 | 1.5 | 220 | 5 | 400 | ER16 | Grease | Air-Cooling | 2*7004 2*7002 | 6 |
| GDZ80/2.2F | 24000 | 2.2 | 220 | 5 | 400 | ER16 | Grease | Air-Cooling | 2*7004;2*7002 | 6 |
| 24000 | 2.2 | 220 | 5 | 400 | ER20 | Grease | Air-Cooling | 2*7005;2*7002 |

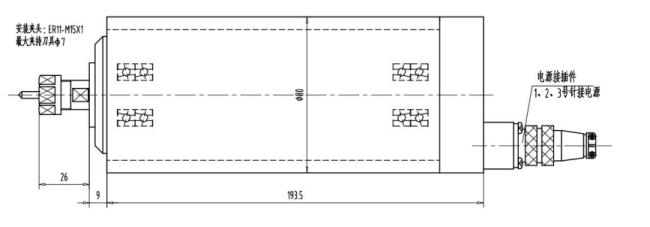

Dimensions:
Application:
