0.32Nm 12Vdc Geared Bipolar Stepper Motor Nema 17 With Gear Reducer 1 5.18

Price Negotiable

Price: negotable

MOQ: 1PCS

Delivery Time: 1-15days

Brand: JSS-MOTOR

Product Description

Low Speed Nema 17 Geared Stepper Motor With Gear Reducer 1:5.18

Size: 42*42mm

Step Angle: 1.8°

Phase voltage: 12VDC

Phase current: 0.4A

Phase resistance: 30Ω±%10

Phase inductance: 35mH±20%

Holding torque: 3.2kg.cm

Lead wires: 4

motor length: 34mm

Gear ratio: 1:5.18

Gearbox Efficiency: 90%

gearbox length: 31mm

Geared stepper motor:

Gearbox parameters:

Specifications		First stage	Second stage	Third stage
Gear ratio		3.71,5.18	14,19,27	51,71,100,139
Length	mm	31	38.5	48.2
Rated load	N.m	1.8	3	4.8
Max load	N.m	5.3	8.9	14
Effiency	%	90	81	73
Blacklash	arcmin	≤60	≤75	≤90
Weight	Kg	0.2	0.25	0.3
Rated input speed	rpm	3000	3000	3000
Max input speed	rpm	5000	5000	5000
Protection class	IP	65	65	65
Lubrication		grease(lifelong Lubrication)	grease(lifelong Lubrication)	grease(lifelong Lubrication)
Noise	dB	≤45	≤45	≤45
Life	h	~20000	~20000	~20000

Stepper motor parameters:

Model No	Step Angle(°)	Rated Voltage(V)	Rated Current (A)	Phase Resistance(Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm)	Detent Torque(g.cm Max)	Rotor Inertia (g.cm²)	Motor Length (mm)	Leads No.	Motor Weight(Kg)
42HS29-0804	1.8	2.3	0.8	2.9	3	1.8	180	25	29	4	0.16
42HS34-0404	1.8	12.0	0.4	30	35	3.2	200	34	34	4	0.22
42HS34-0844	1.8	4.8	0.84	5.75	8	2.8	200	34	34	4	0.22
42HS34-1704	1.8	2.2	1.7	1.3	1.8	2.8	200	34	34	4	0.22
42HS40-0404	1.8	12.0	0.4	30	60	4.2	220	54	40	4	0.28
42HS40-0804	1.8	5.4	0.8	6.8	12	4.5	220	54	40	4	0.28
42HS40-1204	1.8	6.6	1.2	5.5	11	5.2	220	54	40	4	0.28
42HS40-1684	1.8	2.8	1.68	1.68	3.4	4	220	54	40	4	0.28
42HS40-1704	1.8	3.4	1.7	2	3	4	220	54	40	4	0.28
42HS40-1206	1.8	4.0	1.2	3.3	3.5	2.97	220	54	40	6	0.28
42HS48-0404	1.8	12.0	0.4	30	45	4.5	280	68	48	4	0.38
42HS48-1004	1.8	4.5	1	4.5	10	5	280	68	48	4	0.38
42HS48-1304	1.8	4.6	1.3	3.5	6.6	5.5	280	68	48	4	0.38
42HS48-1504	1.8	4.2	1.5	2.8	5.5	5.5	280	68	48	4	0.38
42HS48-1684	1.8	3.4	1.68	2	3.8	5.2	280	68	48	4	0.38
42HS48-0406	1.8	12.0	0.4	30	28	3.2	280	68	48	4	0.38
42HS52-1504	1.8	4.5	1.5	3	7	6.8	300	80	52	4	0.45
42HS60-1504	1.8	3.8	1.5	2.5	6	7	360	95	60	4	0.55

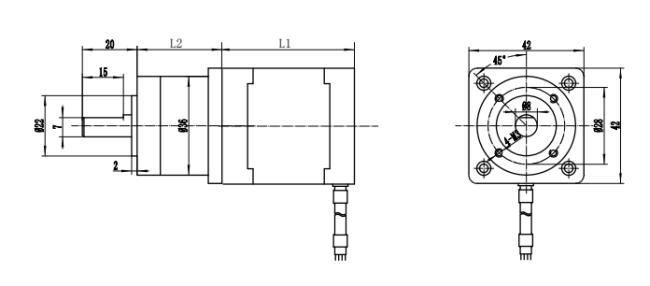

Dimensions:

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
