Medcial Industry Nema 8 Lead Screw Stepper Motor 180g.Cm Torque 0.4A Current
Price:
USD 8-9 pcs
MOQ:
1 pcs
Delivery Time:
5-10 days
Brand:
JSS
Product Description
Nema 8 Lead Screw Stepper Motor Samllest Size Stepper Motor 180g.Cm Torque 0.4A Current Medcial Industry Using
Stepper motors divide each full rotation into a number of equally sized steps. Also known as step or stepping motors, these 2-phase brushless DC motors offer quick, precise load positioning and exceptional holding torque at any of these incremental steps. Each step represents 1.8°, or 200 steps per revolution. When using a microstepping drive, each 1.8° step can be broken into even smaller increments to achieve nearly servo-like positioning performance—without the need for complex feedback devices or a closed-loop control system.
Motor Specification
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(g) |
| 20HS28-0204 | 1.8 | 4.6 | 0.2 | 23 | 8.2 | 140 | 2.5 | 28 | 4 | 50 |
| 20HS30-0506 | 1.8 | 5.75 | 0.5 | 11.5 | 1.7 | 180 | 2.8 | 30 | 6 | 60 |
| 20HS33-0604 | 1.8 | 3.9 | 0.6 | 4.5 | 1.6 | 180 | 3.2 | 33 | 4 | 70 |
| 20HS38-0604 | 1.8 | 6 | 0.6 | 10 | 5.5 | 260 | 3.6 | 38 | 4 | 80 |
| 20HS42-0804 | 1.8 | 1.2 | 0.8 | 1.5 | 5.4 | 300 | 4 | 42 | 4 | 90 |
Lead screw Specification
| Diameter | Lead Distance mm | Start | Step length mm | Applicable Motor |
| M5 | 1.6 | 2 | 0.008 | 20HSL-E |
| Tr5*2 | 2 | 2 | 0.01 | 20HSL-E |
| Tr6.5 | 3 | 2 | 0.015 | 20HSL-E |

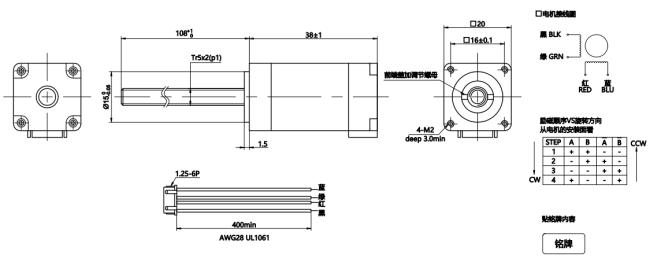

Motor Dimension
Features
- High torque magnetic design features a large rotor diameter, small air gap, high energy magnets and computer controlled winding to provide maximum torque in the smallest size
- Aluminum shell and end-caps quickly remove heat from the motor, allowing for higher current and torque ratings while running at a lower temperature for longer motor life
- Large bearing system accommodates high thrust loads and high side loading
- High voltage molded insulation system encases the stator, eliminating joints and gaps to improve reliability and increase voltage ratings
- CT Series motors can be used with all standard stepper drives, as well as high-voltage, high-performance drives
- Available in NEMA 17 and 23 frame sizes with a wide selection of lengths, windings and shafts
- Easy to apply worldwide – CE and RoHS certified as a standar
.
