3000K-5700K Industrial LED Flood Light 160W 200W 240W IP66 Tank Series
Industrial LED Floodlight 160W 200W 240W IP66 Tank Series
160W 200W 240W IP66 Industrial LED Floodlight Industrial LED Lighting Tank Series
Highlight: LED flood light, Industrial light fixtures
Features And Benefits:
1. Robust aluminum housing and strong tempered glass.
2. High efficacy LED Source with long lifespan>100,000 hours.
3. Low THD around 10%, less interference.
4. Vibration and shock resistant.
5. Dust proof structure design to avoid dust accumulation.
6. IP66 rated.
Product Differentiation:
| Executive Standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -40℃ ≤ Ta ≤ +55℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |
Applications:

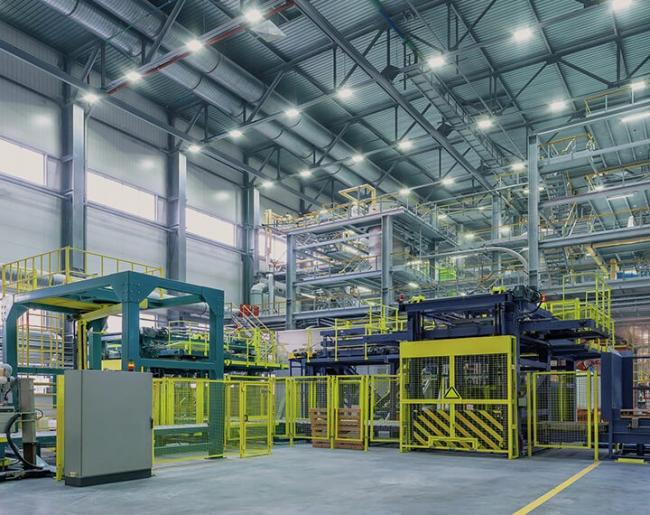

Industrial LED Flood Light can be used in industrial safe areas like factory, warehouse, loading areas etc.
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KTK160**CH-P2-E |
100-277 VAC (141-392 VDC) |
22910 |
160
200 |
70 | Cool white | 5700K±300K |
| KTK160**NH-P2-E | 22910 | 70 | Natural white | 5000K±300K | ||
| KTK160**NH-P2-E | 22910 | 70 | Natural white | 4000±300k | ||
| KTK160**WM-P2-E | 20619 | 70 | Warm white | 3000±300k | ||
| KTK200**CH-P2-E | 29145 |
200 |
70 | Cool white | 5700±300k | |
| KTK200**NH-P2-E | 29145 | 70 | Natural white | 5000±300k | ||
| KTK200**NH-P2-E | 29145 | 70 | Natural white | 4000±300k | ||
| KTK200**WM-P2-E | 26230 | 70 | Warm white | 3000±300k | ||
| KTK240**CH-P2-E | 34136 | 240 | 70 | Cool white | 5700±300k | |
| KTK240**NH-P2-E | 34136 | 70 | Natural white | 5000±300k | ||
| KTK240**NH-P2-E | 34136 | 70 | Natural white | 4000±300k | ||
| KTK240**WM-P2-E | 30884 | 70 | Warm white | 3000±300k |
Remarks:
1. The first * stands for Operating Voltage including default -100-277VAC,D-347-480VAC ,E-20-30VAC.
2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.
