Working principle of outdoor power supply

The outdoor power supply consists of a control board, battery pack, inverter, and BMS system, which can convert direct current (DC) into alternating current (AC) for other electrical appliances through the inverter. At the same time, it also supports various interface DC outputs to charge various electrical equipment.

Lifetime of outdoor power supply

The typical lifespan of outdoor power sources is approximately 500 to 2500 cycles.

The number of cycles is a unit used to represent the lifespan of outdoor power sources, with charging and discharging counted as one cycle. That is to say, if the lifespan of an outdoor power supply is 800 times, then from 0% charging to 100% discharge to 0% usage, the lifespan is approximately 800 times.

The lifespan of energy storage power supplies is displayed in terms of cycles, as the standard lifespan of the same model varies depending on usage conditions and environment.

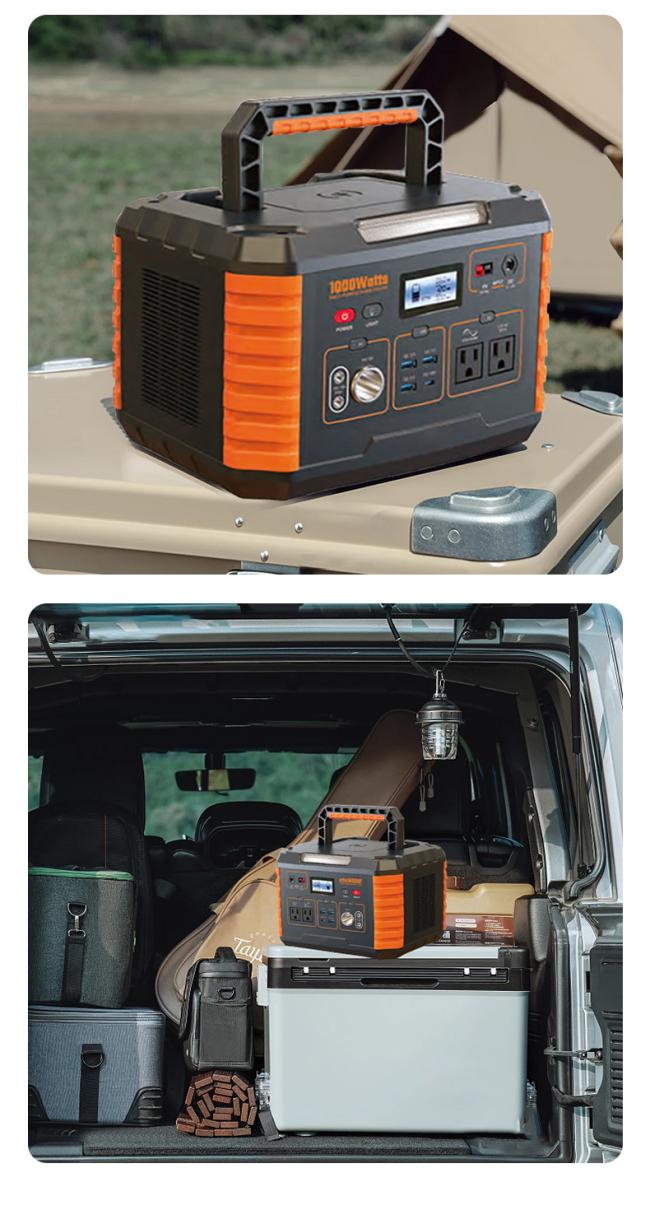

MP1000

Rated power: 1000W

Rated capacity: 999.2Wh

Standard capacity: 3.7V/270000mAh

Overload protection: 1100±80W

AC output: 220V or 110V±10% 50/60HZ

Output waveform: Pure sine wave

USB output: QC3.0/18W

Type-C Output: PD60W

Cigarret lighter output: 14V/8A

DC55*2.1 output: 14V/8A

Wireless charging: 10W

Charging input Voltage: 12-26V

Working temperature: ▬10-40℃

Net weight: ≈7.5kg

Gross weight: ≈ 8.5kg

Dimension: 290*194*200mm

(AC output standard:US/JA, EUROPE, AU,DE,CN)
