BK7 Uncoated Right Angle Glass Prism Rhomboid 60mm
Length 1-60mm N-BK7 High Tolerance Right Angle Prisms
Map Optics provides OEM of Rhomboid prism in various sizes,
The rhomboid prism can be customized according to the needs

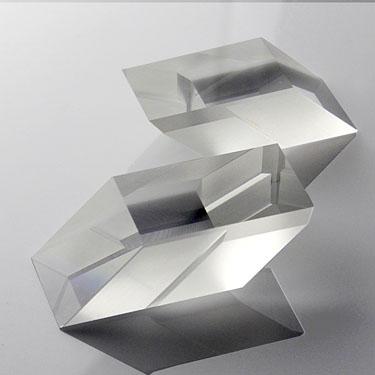

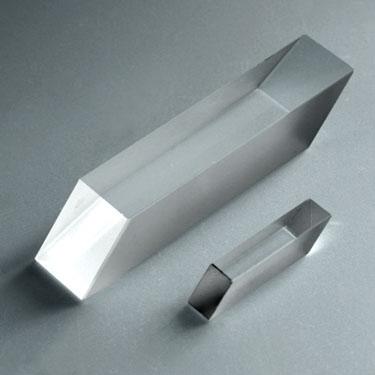

A Rhomboid prism is a type of reflective prism which is commonly used to displace a laser beam without changing it's direction. Effectively a Rhomboid prism acts as a pair of single mirrors and have a shape where it's lateral displacement is equal to the length of the prism. In imaging applications a Rhomboid prism will be used to displace the optical axis without inverting the image.
They maybe coated to transmit part of the beam and product two parallel and displaced emerging beams.
Generally our Rhomboid prisms are uncoated and rely on total internal reflection.
+ General Parameters (Rhomboid Prisms)
| Standard | High Pricision | |
| Material | N-BK7, Fused Silica, Custom | |
| Size | 0.5mm-380mm | |
| Size tolerance | ±0.1mm | ±0.03mm |
| Angle Tolerance | <3' | <0.5'' |
| Clear Aperture | ≥90% | 100% |
| Surface Quality | 60/40, 40/20 | 20/10, 10/5 |
| Surface Flatness | 1/2 lambda, 1/4lambda | 1/10Lambda, 1/20Lambda |
| Parallelism | +/-3' , +/-30'' | <0.5'' |
| Bevel | <0.2mm±45° | No Bevel (The Angle is unbroken) |
| Coating | Uncoated, AR, BBAR, Reflective | |
