N-BK7 1050nm Flat Plano Convex Lenses Plane 600mm
Price:
Negotiable
MOQ:
5pcs
Delivery Time:
28-35 working days
Brand:
Processing customized
Product Description
Diameter 0.5-600mm 650-1050nm N-BK7 Plano-Convex Lenses
Map Optics provides OEM of flat and convex lenses. The focal length of flat and convex lenses is positive.
This product is ideal for optical parallelism, or for focusing applications using monochrome lighting where flat convex lenses have a convex surface.
For maximum efficiency, the second plane should be oriented toward the focal plane to be processed.
Flat e convex lenses are commonly used for such products and are used in various industries such as industrial, pharmaceutical, robotics or defense.

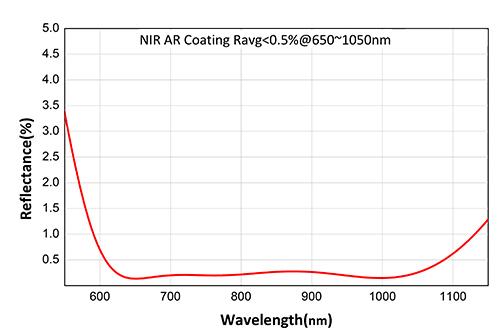

Coating parameters
Processing capacity
| Material | N-BK7 |
| Name | Plano-Convex Lenses |
| Diameter Tolerance | +/-0.02 mm |
| Thickness Tolerance | +/-0.01 mm |
| Clear aperture | 90% |
| Surface Quality | 60/40~10/5 scratch and dig |
| Surface accuracy | λ/8 @632.8nm |
| Flatness | N<3(0.5)@632.8nm |
