Optical glass CaF2 Double Convex Spherical Lens
Optical glass CaF2 Double Convex Spherical Lens
Double-Convex (DCX) Lenses have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.
Map Optics provides dual convex lenses without coating or antireflection film plating.
Anti-reflection membrane options include UV, VIS, NIR, and SWIR.

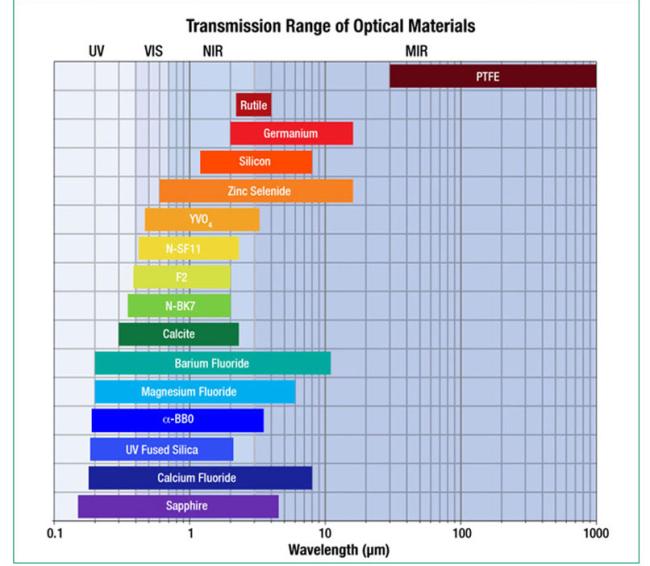

Germanium, silicon, or zinc selenide substrates are suitable for infrared applications, while fused quartz is suitable for uv applications
- Wavelength Range of 350-2200nm
- Precision Diameter and Centration Tolerances Allow for Easy OEM Integration
- Wide Variety of Diameters, Focal Lengths, and Coatings
- Anti-Reflection Coating Options: MgF2, VIS 0°, VIS-NIR, NIR I, NIR II, VIS-EXT, and YAG-BBAR
Conventional parameters
| Product name | CaF2 Double Convex Spherical Lens |
| Material | CaF2 |
| Dimension Tolerance | +0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Design Wavelength | 587.6 |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | N<3(0.5)@632.8nm |
| Centration | <3 arc minutes |
| Focal Length Tolerance | ±2% |
| Chamfer | Protective<0.5mmx45° |

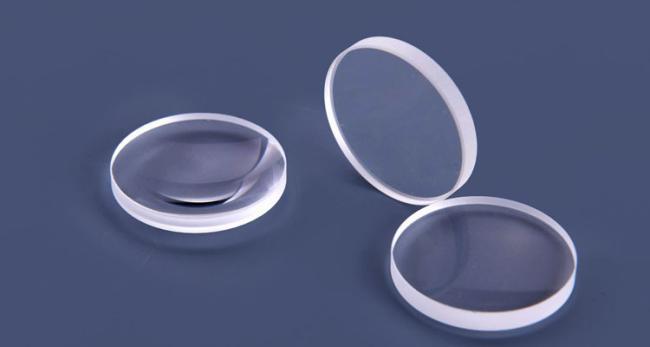

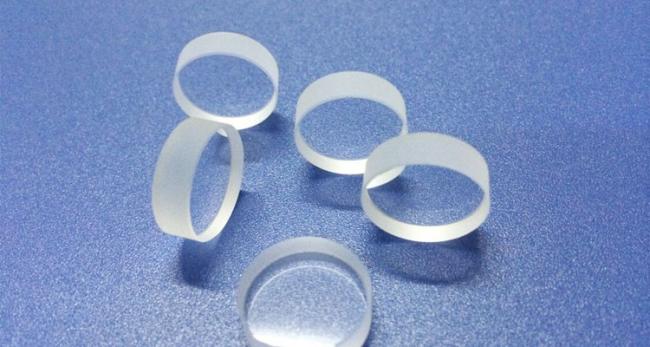

Pictures show
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
