Optical glass 10.6 μm High quality ZnSe Plano-Convex (PCX) Lenses
Optical glass 10.6 μm High quality ZnSe Plano-Convex (PCX) Lenses
Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light in imaging applications. They are also useful in a variety of applications involving emitters, detectors, lasers, and fiber optics. Coated versions have optimum light transmission. Available in a wide variety of diameters and focal lengths.
Map optics technology provides uncoated, coated anti - reflection film of double - concave mirror sheet.

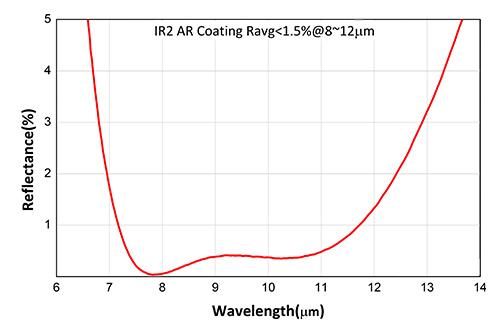

Anti-reflection membrane options include UV, VIS, NIR, and SWIR.
Germanium, silicon, or zinc selenide substrates are suitable for infrared applications, while fused quartz is suitable for uv applications.
Conventional parameters
| Product name | Plano-Convex (PCX) Lenses |
| Material | ZnSe |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Design Wavelength | 587.6nm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | N<3(0.5)@632.8nm |
| Centration | <3 arc minutes |
| Focal Length Tolerance | ±2% |
| Chamfer | Protective<0.5mmx45° |

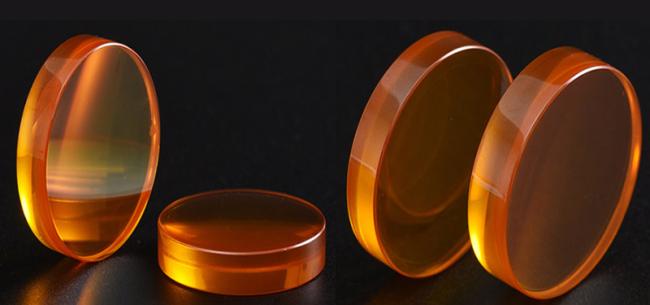

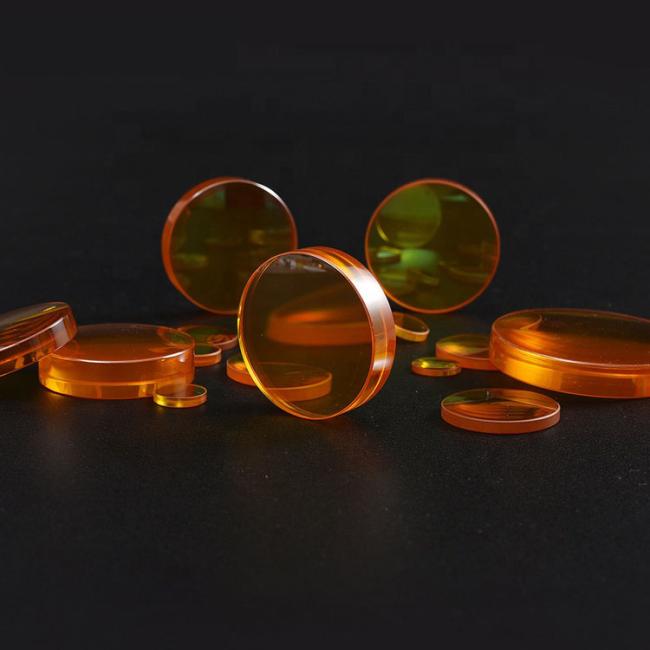

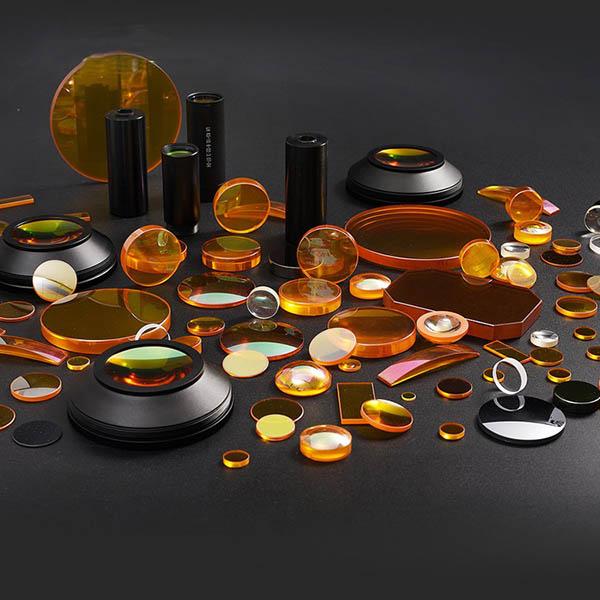

Pictures show
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
