Optical glass 180nm - 8.0 μm Calcium Fluoride Plano-Concave(PCV) Lenses
Optical glass 180nm - 8.0 μm Calcium Fluoride(CaF2) Plano-Concave(PCV) Lenses
Calcium Fluoride (CaF2) Plano-Concave Lenses offer high transmission from 0.18 µm to 8.0 μm. CaF2 is commonly used for applications requiring high transmission in the infrared and ultraviolet spectral ranges. Its extremely high laser damage threshold makes it useful for use with excimer lasers. The material exhibits a low refractive index, varying from 1.35 to 1.51 within its usage range of 180 nm to 8.0 μm. Calcium fluoride is also fairly chemically inert and offers superior hardness compared to its barium fluoride, magnesium fluoride, and lithium fluoride cousins.
Like all plano-concave lenses, these lenses have negative focal lengths and can be used to diverge collimated beams; in this case, the curved surface should face the source in order to minimize spherical aberration. In addition, they can be employed to offset the effects of spherical aberration caused by other lenses in an optical system.
Map optics technology provides uncoated, coated anti - reflection film of Plano-Concave Lenses sheet.
Anti-reflection membrane options include UV, VIS, NIR, and SWIR.
Germanium, silicon, or zinc selenide substrates are suitable for infrared applications, while fused quartz is suitable for uv applications.
Conventional parameters
| Product name | Plano-Concave(PCV) Lenses |
| Material | CaF2 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Design Wavelength | 588 nm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | N<3(0.5)@632.8nm |
| Centration | <3 arc minutes |
| Focal Length Tolerance | ±2% |
| Chamfer | Protective<0.5mmx45° |

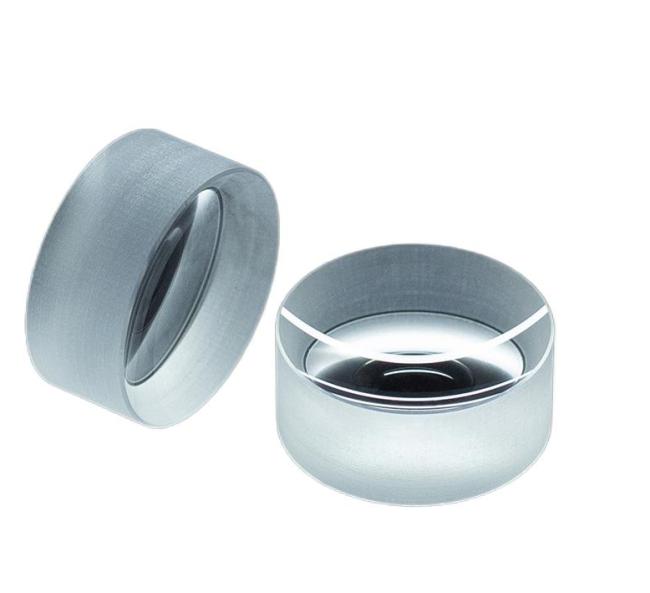

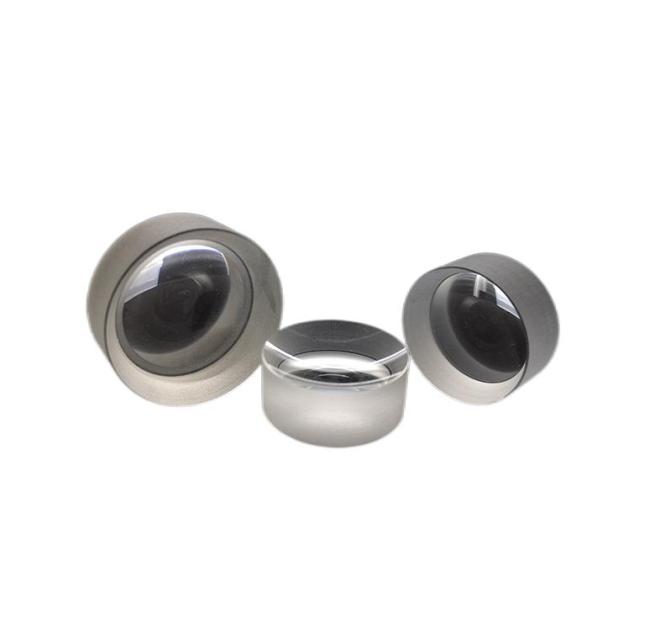

Pictures show
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
