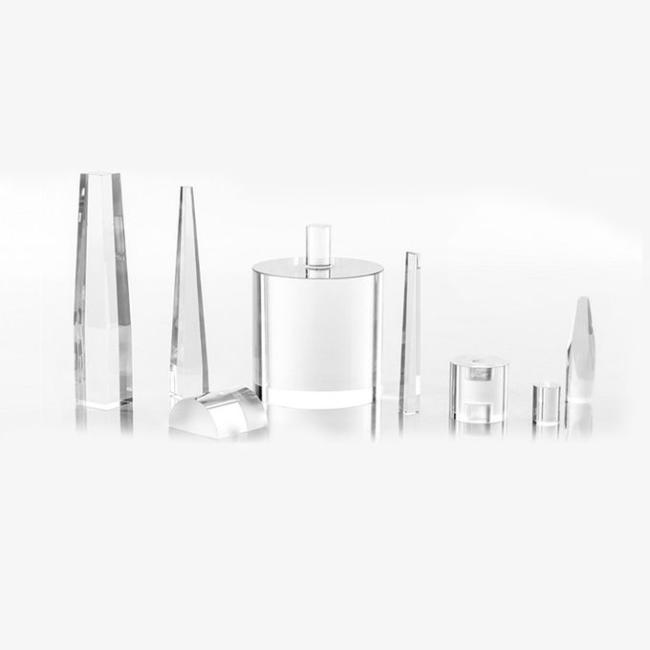

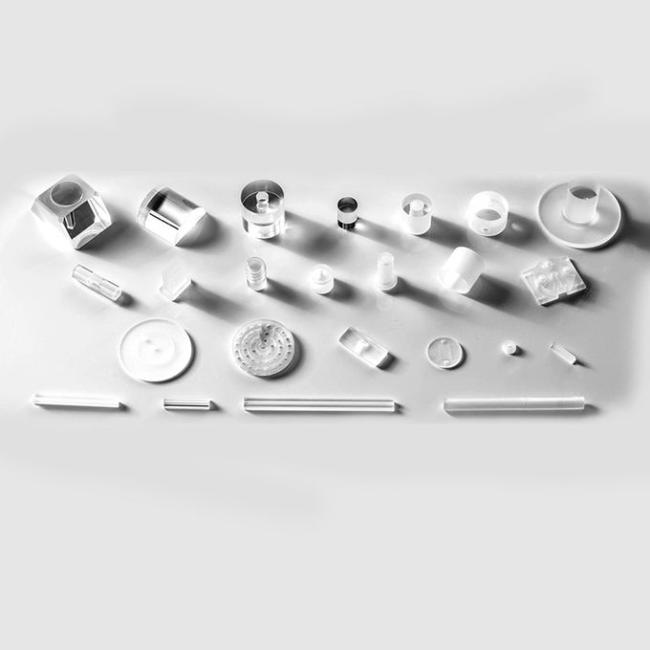

K9L Laser Domed Sapphire Crystal Mineral Lens 10mm Optical Axis
Sapphire Crysta 10-300mm Use of laser instruments Sapphire dome Lens
|
Dome windows are hemispheres. The two optical surfaces are an equal thickness apart, creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows. BK7 or K9L domes are used primarily in meteorology applications. BK7 offers excellent transmission from 300nm up to 2µm. BK7 is a relatively hard material, with excellent chemical durability. |
|
|
Coating parameters

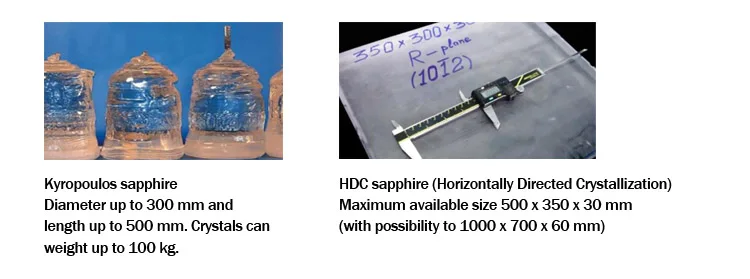

Processing capacity
| Material | Sapphire (Al2O3) |
| Abbe Number (vd) |
72.24 |
| Axis Orientation | Random |
| Birefringence (no-ne) | 0.008 for Visible Light Orthogonal to Optical Axis |
| Clear Aperture (%) | ≥90 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 8.8 |
| Density (g/cm3) | 3.97 |
| Index of Refraction nd | 1.77 |
| Knoop Hardness (kg/mm2) | 1900 |
| Parallelism (arcmin) | ≤3.5 |
| Surface Flatness | 2λ (typical) |
| Surface Quality | 80-50 |
| Surface Roughness (μm) | 0.1 per Inch |
| Young's Modulus (GPa) | 435 |

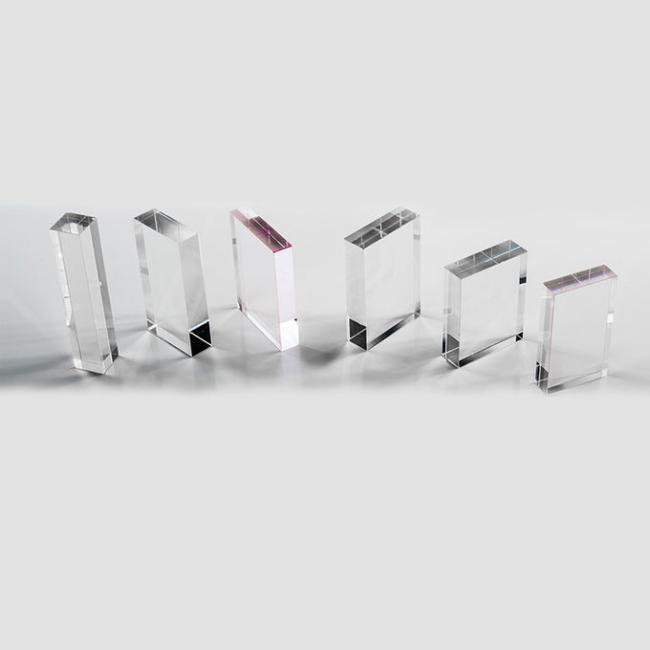

Specifications
| Attribute | Commercial Quality | Precision Quality | Ultra-Precision Quality |
| Size (round and square) |
Ø from 10 to 300 mm
from 10 to 210 mm
|
||
| Size tolerance | ± 0.2 mm | ± 0.1 mm | ± 0.05 mm |
| Thickness | From 0.2 to 200 mm | ||
| Thickness tolerance | ± 0.1 mm | ± 0.1 mm | ± 0.05 mm |
| Parallelism | < 5 arc minutes | < 1 arc minutes | < 20 arc seconds |
| Surface accuracy (PV) | 5 λ (546 nm) | λ /2 (546 nm) | λ/10 (546 nm) |
| Surface quality (scratch & dig) | According to MIL 80 - 50 | According to MIL 40 - 20 | According to MIL 20 – 10 |
| Surface roughness (Rq) | < 5 nm | < 1 nm | < 0.5 nm |
| AR coating | Custom-designed | ||
| Order quantity | Depending on customer specifications. Please contact us. | ||
| Delivery time (weeks) | 6 - 10 weeks, assuming raw materials are available. | ||
Packing Details :Use Good and Strong Cartons to pack
We offer more transportation options
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples ? is it free or extra ?
A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.
Q:What is your MOQ ?
MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
